Maximize your dairy throughput with a custom-configured parallel milking parlor designed for medium to large herds. The side-by-side stall layout fits more milking units into a shorter building than any other design, while the central operator pit enables one person to manage an entire milking shift efficiently. Constructed from food-grade 304 stainless steel with silicone milk tubes, this system combines pneumatic pulsation that mimics natural calf suckling with individual transparent milk meters for real-time production tracking. Each parlor is custom-built from double-2 to double-40 stalls — configured precisely to your herd size, barn footprint, and milking schedule.
Why Choose This Parallel Milking Parlor
Short Benefits
- High throughput side-by-side design fits more stalls per meter of building length
- 304 stainless steel frame and food-grade silicone milk tubes meet international dairy standards
- Pneumatic pulsation mimics natural calf suckling for better milk let-down and udder health
- Individual transparent milk meters allow instant visual inspection and production recording
- Custom stall counts from double-2 to double-40, tailored to your herd
Suitable For
Dairy cattle, water buffalo, dairy sheep, dairy goats, camels, and donkeys.
Get a Tailored Livestock Equipment Solution
Tell us your farm size, layout, and requirements — we’ll recommend the most efficient setup for your operation.
What Is a Parallel Milking Parlor?

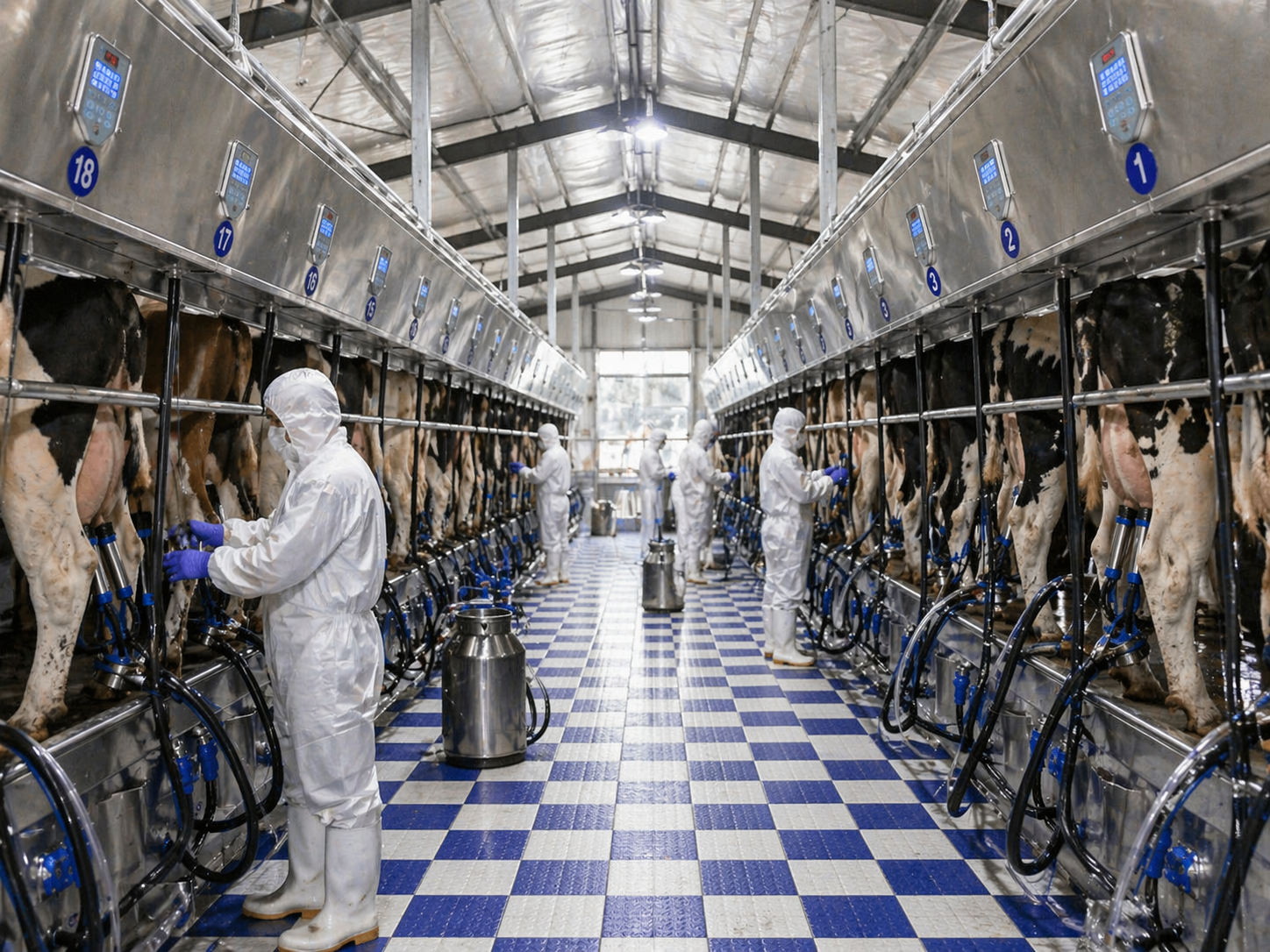

A parallel milking parlor is a high-efficiency milking system where animals stand side by side, perpendicular to a central operator pit. This layout allows a large number of cows to be milked simultaneously in a compact space — dramatically improving throughput compared to herringbone or tandem designs. The operator accesses the udder from behind, between the hind legs, working at waist height in the lowered pit. Our systems are manufactured from food-grade 304 stainless steel and silicone tubing, ensuring hygienic milk collection and easy CIP cleaning. With electronic pulsation control, individual milk meters at each stall, and custom stall counts from 4 to 80, this design serves as the global standard for modern, scalable dairies milking cattle, sheep, goats, or camels.
How It Works
- Cow Positioning: Animals walk onto the raised platform and stand side by side in individual stalls, each secured by a front gate. The layout maximizes stall density per meter of building length.
- Operator Preparation: The operator, standing in the lowered central pit, has direct rear access to the udder for cleaning, fore-stripping, and unit attachment — all at ergonomic height.
- Intelligent Milking: The electronic control panel sets the pneumatic pulsation rate, mimicking a calf’s nursing rhythm to stimulate oxytocin release and promote faster, gentler milk let-down.
- Real-Time Monitoring: Milk flows into a transparent graduated meter at each stall, allowing the operator to check for abnormalities and record individual yields — preventing over-milking and supporting early mastitis detection.
- Automatic Cleaning: After milking, the entire system — pipelines, milk meters, and clusters — is flushed with a CIP cleaning cycle, ensuring sanitary conditions for the next session.
Application Scenarios
- Dairy Cattle Farms: Handle 100–2,000+ lactating cows efficiently in a double-10 to double-40 configuration with consistent throughput.
- Commercial Goat & Sheep Dairies: Custom stall width and cluster size for smaller animals — ideal for operations milking 200–1,000 head of small ruminants.
- Camel & Specialty Dairies: Robust custom-dimensioned stalls and platforms safely accommodate camels, donkeys, and other large milking animals with unique requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Stall Configuration | Parallel (Side-by-Side) |
| Custom Options | Double-2 to Double-40 (4 to 80 stalls) |
| Construction Material | Heavy-gauge 304 Stainless Steel Frame & Receiver |
| Milk Contact Material | 304 Stainless Steel & Food-Grade Silicone |
| Pulsation Type | Electronic Pneumatic Alternating |
| Milk Metering | Transparent Graduated Receiver Jar (per stall) |
| Control System | Smart Electronic Digital Panel |
| Power Supply | Customizable: 220V / 380V |
| Motor Power | 0.75 kW – 7.5 kW (Scaled to Parlor Size) |
| Compatible Systems | In-line Plate Coolers, Bulk Cooling Tanks, Automatic Cluster Removers (ACR) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Stall Configuration | Parallel (Side-by-Side) |
| Custom Options | Double-2 to Double-40 (4 to 80 Stalls) |
| Construction Material | Heavy-Gauge 304 Stainless Steel Frame & Receiver |
| Milk Contact Material | 304 Stainless Steel & Food-Grade Silicone |
| Pulsation Type | Electronic Pneumatic Alternating |
| Milk Metering | Transparent Graduated Receiver Jar per Stall |
| Control System | Smart Electronic Digital Panel |
| Power Supply | Customizable: 220V / 380V |
| Motor Power | 0.75 kW – 7.5 kW (Scaled to Parlor Size) |
| Compatible Systems | In-line Plate Coolers, Bulk Cooling Tanks, Automatic Cluster Removers |
Parallel vs Herringbone vs Rotary Configuration
| Feature | Parallel (Side-by-Side) | Herringbone (Fishbone) | Rotary (Carousel) |
|---|---|---|---|
| Space Efficiency | Excellent — most stalls per building length | Good — requires longer building | Moderate — large circular footprint |
| Operator Access | Rear access between hind legs | Side access to udder | Rear access from fixed position |
| Throughput | High — fast cow flow | Moderate to High | Highest — continuous flow |
| Cost | Moderate investment | Moderate investment | Very high initial investment |
| Maintenance | Low — standard components | Low | High — complex rotating platform |
| Best For | Medium to large herds upgrading from stanchion barns | Farmers who prefer direct udder visibility | Operations exceeding 1,500 cows needing 24/7 milking |
FAQ
How do I determine the right number of stalls for my herd?
A general rule for parallel parlors is one stall per 10–12 lactating cows for a 2-hour milking window. For a 200-cow herd, a double-10 configuration is typical. Provide us with your herd size and target milking duration, and we will calculate the optimal stall count.
Can this parlor be used for both cows and goats?
Yes. We customize stall width, platform height, and cluster size for dairy goats and sheep. Pulsation settings are also adjusted for smaller animals, ensuring comfort and high throughput for mixed-species dairies.
Do you offer designs for camel milking?
Yes. We design camel milking parlor configurations with robust, custom-dimensioned stalls and platforms that safely accommodate their size and temperament. This is a specialized service we have delivered successfully in the Middle East.
What does food-grade materials mean for milk quality?
All metal parts contacting milk are 304 food-grade stainless steel — non-porous and naturally resistant to bacterial growth. All flexible components are food-grade silicone, BPA-free. This ensures your milk meets strict hygiene standards and avoids off-flavors.
How does the pulsation system improve cow comfort?
The electronic pneumatic pulsation system uses controlled bursts of vacuum and massage, mimicking a calf’s suckling rhythm. This stimulates natural oxytocin release for faster milk let-down and reduces teat-end congestion, lowering mastitis risk.
How is the system cleaned between milkings?
The parlor supports fully automated CIP (Clean-in-Place) cycles. Connect the cleaning solution to the system and run the automated wash sequence. The smooth stainless steel and silicone surfaces ensure thorough cleaning with no residue buildup.
