These cow cubicles are designed for dairy barns, freestall barns, cow resting areas, breeding cow barns, heifer barns, and cattle housing projects that need safe, durable, and organized resting spaces. Made from hot-dip galvanized steel pipe, the freestall loops use a smooth formed structure, stable bracket connections, and customizable layout options to help guide cows into proper lying positions and improve barn management.
Why Choose These Cow Cubicles
Short Benefits
- Hot-dip galvanized steel pipe: Built for humid dairy barn environments with better rust and corrosion resistance.
- Smooth formed structure: The cold-bent formed pipe design has a smooth surface and helps reduce burrs and sharp edges.
- Reference size available: Standard reference size is 2100 × 1000 × 60 mm for dairy cow resting areas.
- Strong pipe specification: Φ60 mm pipe with 2.75 mm wall thickness provides stable structure for daily barn use.
- Stable clamp connection: Single cubicle brackets, double cubicle brackets, neck rail brackets, and brisket rail brackets support easier installation.
- Custom barn layout: Cubicle spacing, rail position, support post layout, and accessories can be customized by barn drawing.
- Better cow resting order: The cubicle design helps guide cows into proper lying positions and reduces interference between animals.
- Suitable for multiple cattle groups: Can be adapted for lactating cows, dry cows, breeding cows, heifers, replacement cattle, and young stock.
Suitable For
Dairy barns, freestall barns, cow resting areas, breeding cow barns, heifer barns, replacement cattle barns, young stock housing, and dairy farm renovation projects.
Get a Cow Cubicle Layout Recommendation
Tell us your cattle type, body size, barn layout, stall quantity, bedding type, installation method, and required accessories. We will recommend a suitable cow cubicles configuration for your dairy barn.
Product Overview

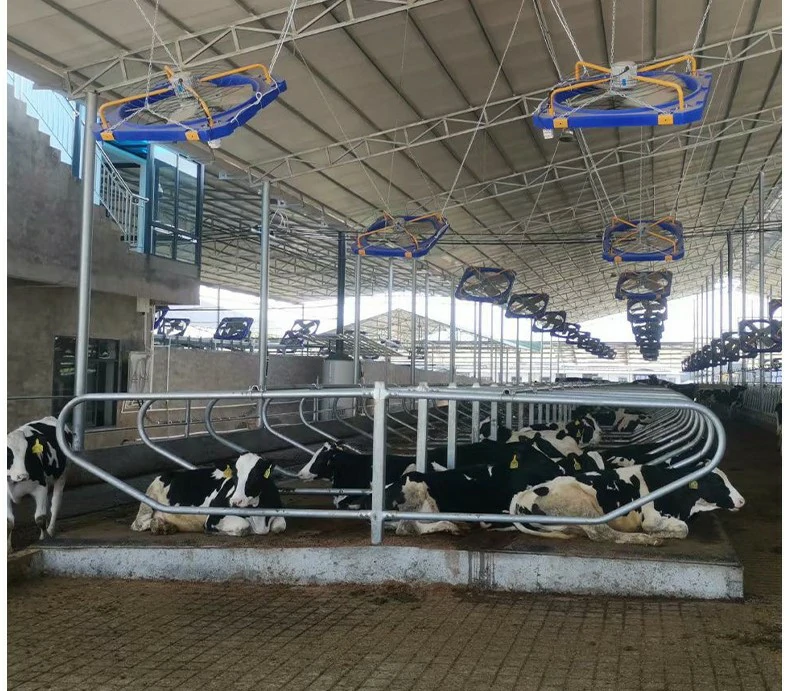

These cow cubicles are hot-dip galvanized freestall loops used to create individual resting spaces in dairy barns and cattle housing systems. They help guide cows into proper lying positions, reduce contact between animals, and make barn resting areas easier to manage.
The freestall loop is made from galvanized steel pipe with a smooth formed structure and bracket-based connection. The reference size is 2100 × 1000 × 60 mm, with Φ60 mm pipe and 2.75 mm wall thickness. A single unit weighs about 17 ± 0.5 kg, making it suitable for stable dairy barn installation and long-term use.
The system can be matched with support posts, PE neck rails, PE brisket rails, single cubicle brackets, double cubicle brackets, neck rail brackets, and brisket rail brackets. It is suitable for new dairy freestall barn construction, old barn renovation, and customized cow comfort projects.
Product Features
- Hot-Dip Galvanized Steel Pipe: The cubicle divider uses hot-dip galvanized steel pipe for better corrosion resistance in dairy barn environments.
- Smooth Cold-Bent Formed Structure: The pipe is formed into a smooth curved shape without rough welding points, helping reduce cow body contact risk.
- Reference Size for Dairy Barns: The reference size is 2100 × 1000 × 60 mm, suitable for common dairy cow resting areas.
- Strong Pipe Specification: The Φ60 mm pipe with 2.75 mm wall thickness provides a stable structure for daily cow lying, standing, and movement.
- Stable Clamp Connection: The cubicles can be installed with clamp brackets and bolts, reducing on-site welding and making maintenance easier.

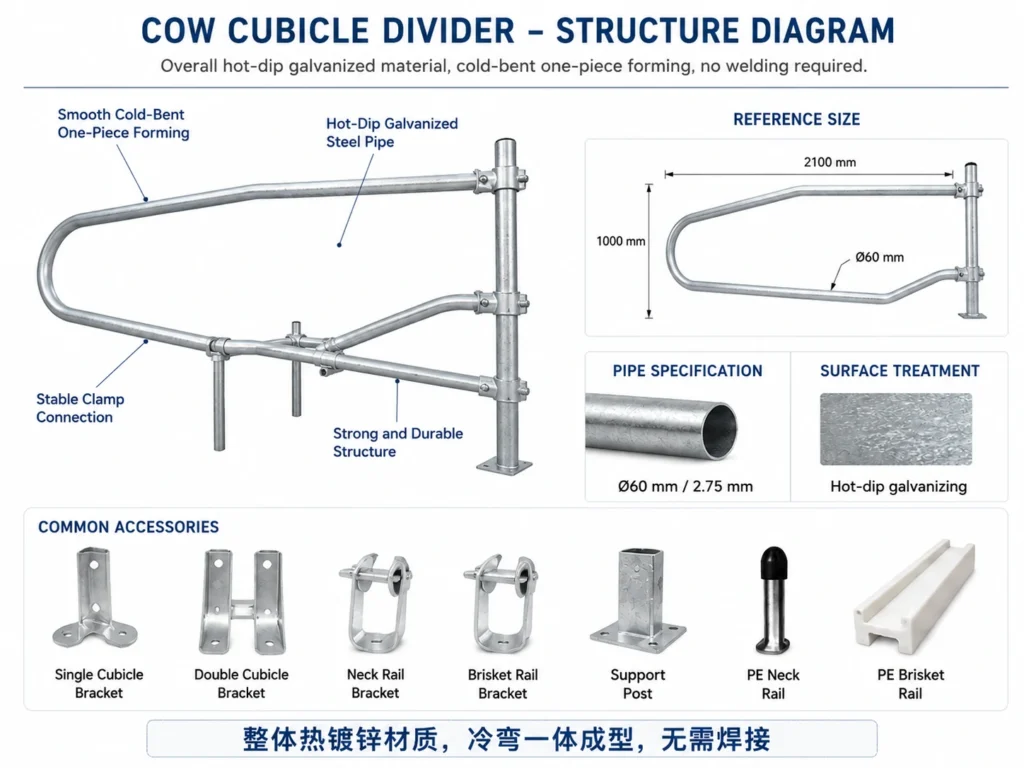

- Complete Accessory Options: Single cubicle brackets, double cubicle brackets, neck rail brackets, brisket rail brackets, support posts, PE neck rails, and PE brisket rails are available.
- Custom Drawing Support: The layout can be customized by barn drawing, stall spacing, cattle size, and installation method.
- Comfort-Oriented Shape: The curved loop structure helps guide cows into the lying area and supports more organized resting behavior.
- Better Barn Management: Cow cubicles help separate resting spaces, improve cow positioning, and support cleaner barn management.
- Suitable for Multiple Cattle Groups: Can be used for lactating cows, dry cows, breeding cows, heifers, replacement cattle, young stock, and post-weaning calf training areas.
Configuration Options
| Configuration | Best For | Main Advantage | Buyer Notes |
|---|---|---|---|
| Single-Side Cow Cubicle Layout | Barns with one row of cubicles along wall or passage | Simple layout and easier installation | Confirm aisle width and wall position |
| Double-Side Cow Cubicle Layout | Large freestall barns | Higher space utilization | Confirm center post layout and cow movement direction |
| Cow Cubicle with Support Posts | New barn construction and renovation | Stable structural support | Confirm post size, fixing method, and ground condition |
| Cow Cubicle with PE Neck Rail | Dairy cow resting area control | Helps guide cow standing and lying position | Confirm neck rail height and distance |
| Cow Cubicle with PE Brisket Rail | Resting position control | Helps prevent cows from moving too far forward | Confirm bedding type and cow body size |
| Customized Cow Cubicle System | Project farms and dealers | Can match barn drawings and cattle body size | Provide layout drawing before quotation |

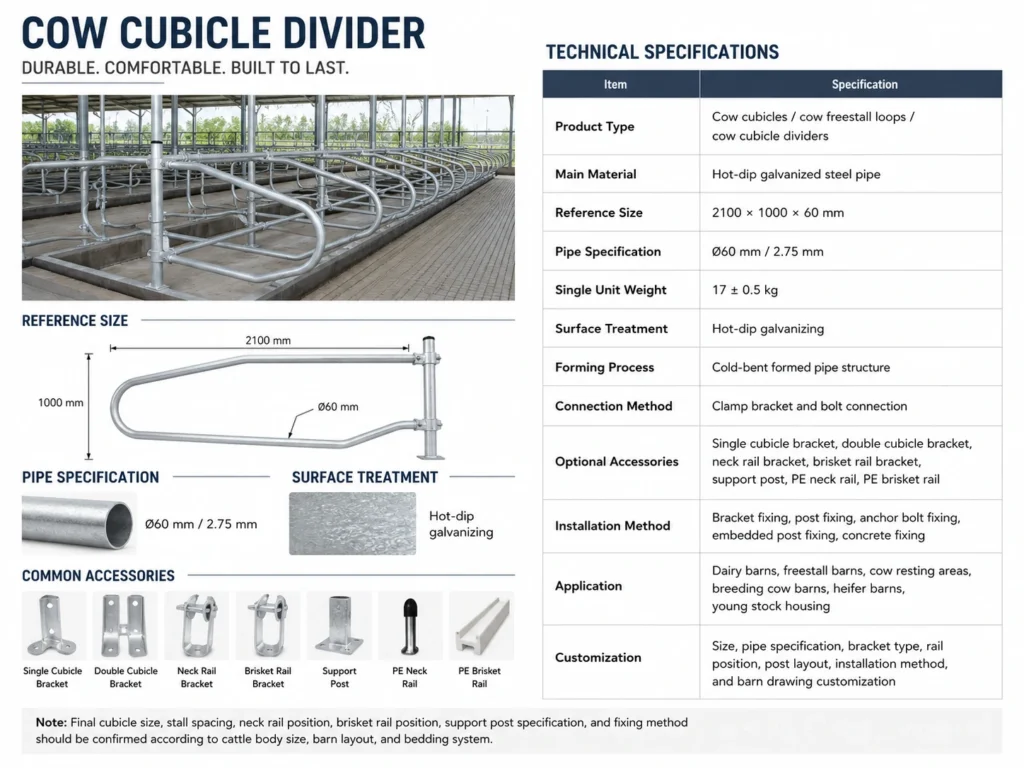

Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Cow cubicles / cow freestall loops / cow cubicle dividers |
| Main Material | Hot-dip galvanized steel pipe |
| Reference Size | 2100 × 1000 × 60 mm |
| Pipe Specification | Φ60 mm / 2.75 mm |
| Single Unit Weight | 17 ± 0.5 kg |
| Surface Treatment | Hot-dip galvanizing |
| Forming Process | Cold-bent formed pipe structure |
| Connection Method | Clamp bracket and bolt connection |
| Optional Accessories | Single cubicle bracket, double cubicle bracket, neck rail bracket, brisket rail bracket, support post, PE neck rail, PE brisket rail |
| Installation Method | Bracket fixing, post fixing, anchor bolt fixing, embedded post fixing, concrete fixing |
| Application | Dairy barns, freestall barns, cow resting areas, breeding cow barns, heifer barns, young stock housing |
| Customization | Size, pipe specification, bracket type, rail position, post layout, installation method, and barn drawing customization |
Note: Final cubicle size, stall spacing, neck rail position, brisket rail position, support post specification, and fixing method should be confirmed according to cattle body size, barn layout, and bedding system.

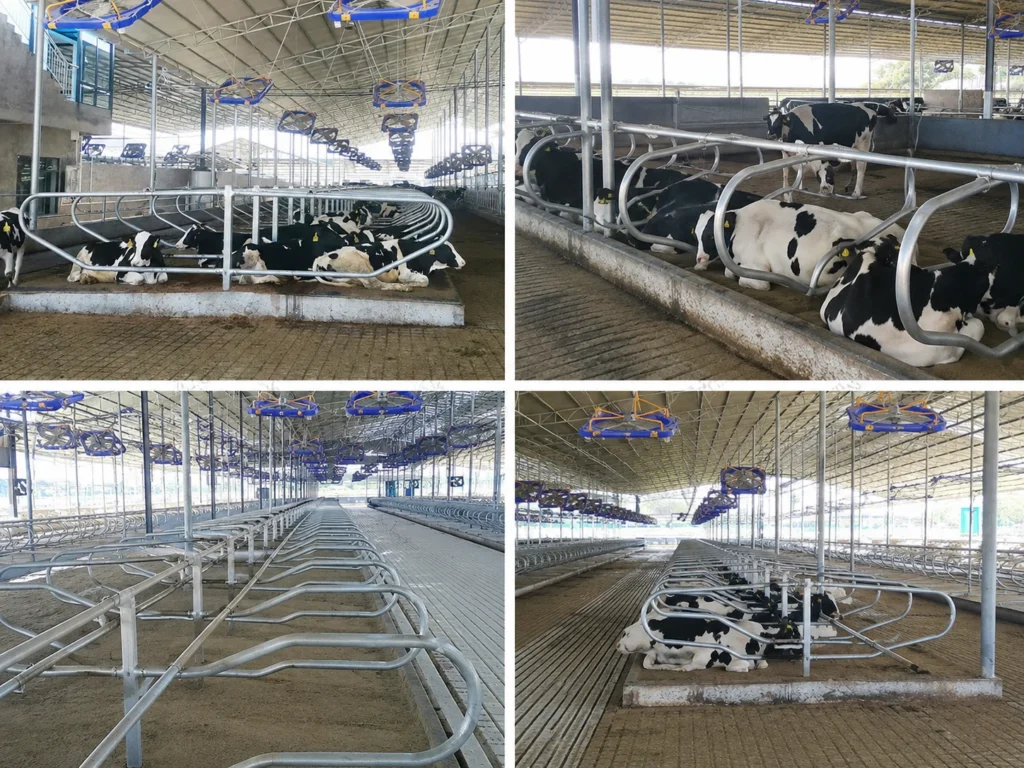

Applications
- Dairy Cow Freestall Barns: Used to create individual lying spaces for lactating cows and dairy herds.
- Dry Cow Resting Areas: Helps provide stable resting space for dry cows before the next lactation cycle.
- Breeding Cow Barns: Suitable for breeding cows that need organized lying and resting areas.
- Heifer Barns: Can be adapted for heifer housing with proper size and spacing adjustment.
- Replacement Cattle Housing: Useful for replacement heifers and young cattle in modern dairy operations.
- Post-Weaning Calf Training Areas: Can be used for post-weaning calf training areas when size is adjusted by body condition.
- Freestall Barn Renovation: Suitable for upgrading old barns into more organized cow resting systems.
- Cow Comfort Projects: Can work with cow mattresses, rubber mats, bedding, and barn ventilation equipment to improve cow comfort.
Installation and Layout Notes
| Installation Point | Recommendation |
|---|---|
| Cubicle Spacing | Confirm according to cow body size, breed, age group, and barn layout |
| Neck Rail Position | Should guide standing position without restricting natural movement |
| Brisket Rail Position | Should help control lying position and prevent cows from moving too far forward |
| Support Post Layout | Choose single-side or double-side layout according to barn structure |
| Bracket Connection | Use matching brackets and bolts to reduce on-site welding and simplify maintenance |
| Ground Fixing | Anchor bolt, embedded post, or concrete fixing can be selected by floor condition |
| Bedding System | Can be used with sand bedding, sawdust bedding, cow mattresses, or rubber mats |
| Project Drawing | Barn layout drawing is recommended before quotation and production |
Customization Options
| Custom Option | Available Choices | Buyer Notes |
|---|---|---|
| Cubicle Size | Standard reference size or custom size | Confirm cattle breed, body size, and age group |
| Pipe Specification | Φ60 mm / 2.75 mm reference, custom pipe options by project | Confirm strength requirement and budget |
| Surface Treatment | Hot-dip galvanizing | Confirm if special corrosion environment exists |
| Bracket Type | Single cubicle bracket, double cubicle bracket, neck rail bracket, brisket rail bracket | Choose by layout and rail configuration |
| Support Post | Custom post size and fixing method | Confirm floor and barn structure |
| PE Rails | PE neck rail and PE brisket rail options | Confirm rail position and cow comfort requirement |
| Installation Method | Anchor bolt, embedded post, bracket fixing, concrete fixing | Confirm site condition before quotation |
| Layout | Single-row, double-row, head-to-head, tail-to-tail, custom drawing | Provide barn layout drawing if available |
| Branding / Packaging | Label, packaging, bundle quantity | Suitable for dealers and project buyers |
Product Comparison
| Feature | Cow Cubicles | Cow Mattresses | General Cattle Panels |
|---|---|---|---|
| Main Function | Create individual lying spaces and guide cow resting position | Provide soft lying surface | Separate cattle or create pen boundaries |
| Best For | Dairy freestall barns and cow resting areas | Cow comfort and lying surface support | Pen layout and cattle movement control |
| Material | Hot-dip galvanized steel pipe | Rubber or foam-based material | Steel pipe or panel structure |
| Cow Positioning | Strong guidance for lying and standing position | Limited positioning function | Not designed for lying position control |
| Installation | Brackets, posts, rails, and barn layout | Installed on floor surface | Fence or gate installation |
| Common Pairing | Cow mattresses, rubber mats, bedding, neck rails, brisket rails | Cow cubicles and bedding | Gates, alleys, and cattle handling equipment |
| Recommended Buyer | Dairy farms building or upgrading freestall barns | Farms improving cow lying comfort | Farms needing cattle pen separation |
Why Choose Our Cow Cubicles?
- Clear Specification Data: Reference size, pipe diameter, wall thickness, weight, material, and accessory options are available for buyer evaluation.
- Hot-Dip Galvanized Construction: Suitable for humid, corrosive, and high-cleaning dairy barn environments.
- Smooth Formed Structure: The curved pipe design supports cow safety and reduces sharp contact points.
- Complete Accessory System: Brackets, posts, PE rails, neck rail brackets, and brisket rail brackets can be supplied together.
- Custom Barn Layout Support: Cubicle size, spacing, rail position, and installation method can be adjusted by cattle type and barn drawing.
- Suitable for Multiple Cattle Groups: Lactating cows, dry cows, breeding cows, heifers, young stock, and post-weaning calf training areas can be considered with proper sizing.
- B2B Export Support: Product photos, videos, layout confirmation, accessory confirmation, packaging advice, and export communication are available before shipment.
Common Questions
Cow cubicles are used to create individual resting spaces in dairy barns and freestall barns. They help guide cows into proper lying positions, reduce interference between animals, and improve barn resting area management.
They are made from hot-dip galvanized steel pipe, which provides better rust and corrosion resistance in humid dairy barn environments.
The reference size is 2100 × 1000 × 60 mm, with Φ60 mm pipe and 2.75 mm wall thickness. Final size can be customized according to cattle body size and barn layout.
Available accessories include single cubicle brackets, double cubicle brackets, neck rail brackets, brisket rail brackets, support posts, PE neck rails, PE brisket rails, bolts, and fixing parts.
Yes. Cubicle size, pipe specification, bracket type, support post, neck rail position, brisket rail position, installation method, and barn layout can be customized by project requirements.
Yes. They can be adapted for heifers, replacement cattle, young stock, and post-weaning calf training areas when dimensions and spacing are adjusted according to body size.
They can be installed by clamp brackets, bolts, support posts, anchor bolts, embedded posts, or concrete fixing. The final method should be confirmed according to barn floor and layout.
Please provide cattle type, body size, barn layout, required stall quantity, bedding type, floor condition, installation method, and whether you need support posts, neck rails, brisket rails, and brackets.
