This horizontal feed mixer is designed for cattle, sheep, and mixed livestock farms that need fast TMR ration mixing with a compact twin-shaft structure. It can process chopped straw, silage, hay, grain, concentrate, and by-product feed ingredients. Models from 2m³ to 24m³ are available for family farms, medium operations, and larger feeding workloads.
Why Choose This Horizontal Feed Mixer
Short Benefits
- Twin-shaft mixing system: Opposite-rotation twin shafts help move and blend feed materials quickly inside the horizontal chamber.
- Fast TMR ration preparation: Suitable for chopped straw, silage, hay, grain, concentrate, wet by-products, and mixed feed additives.
- Hydraulic discharge: The hydraulic discharge door supports fast unloading with cleaner feed flow and less manual handling.
- Electronic weighing system: Helps measure feed weight and support more accurate ration preparation and feed inventory management.
- Dual pure copper motor drive: Strong motor configuration supports stable operation for daily farm feeding work.
- Thickened plum-blossom blades: Reinforced blades help cut, stir, and mix forage materials more evenly.
- 2–24m³ model range: Multiple models are available for family farms, medium farms, and larger livestock operations.
- Custom configuration support: Capacity, motor power, reducer type, soft-start option, discharge setup, color, and branding can be customized.
Suitable For
Cattle farms, sheep farms, goat farms, horse farms, donkey farms, deer farms, pig farms, and mixed livestock operations that need efficient feed mixing.
Get a Horizontal Feed Mixer Recommendation
Tell us your animal type, herd size, daily feeding volume, feed ingredient form, available power, and required batch capacity. We will recommend a suitable horizontal feed mixer model and configuration for your farm.

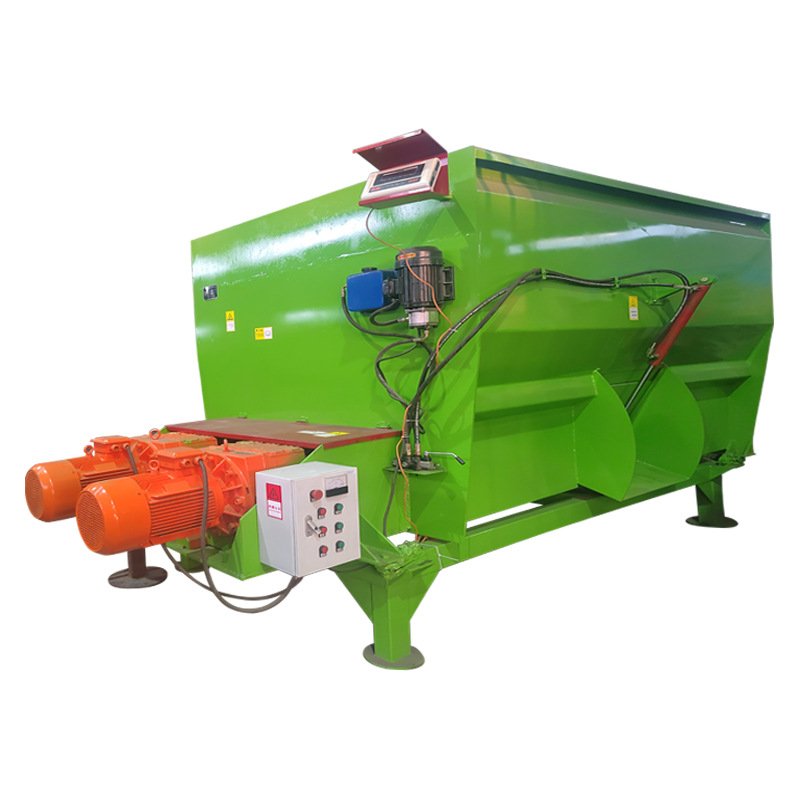

Product Overview
A horizontal feed mixer is a TMR ration preparation machine designed to mix chopped forage, silage, straw, grain, concentrate, and by-product feed ingredients in a horizontal mixing chamber. It is suitable for farms that need fast mixing, controlled discharge, and a practical model range for different herd sizes.
This model uses a horizontal twin-shaft mixing structure with thickened blades, hydraulic discharge, electronic weighing, dual motor drive, and reducer transmission. The machine is especially suitable for pre-cut or chopped feed materials and can be matched with different capacities from small family farms to larger livestock operations.
For farms that need compact installation, stable mixing, and easier ration control, this horizontal TMR feed mixer provides a practical solution for daily cattle and sheep feeding.

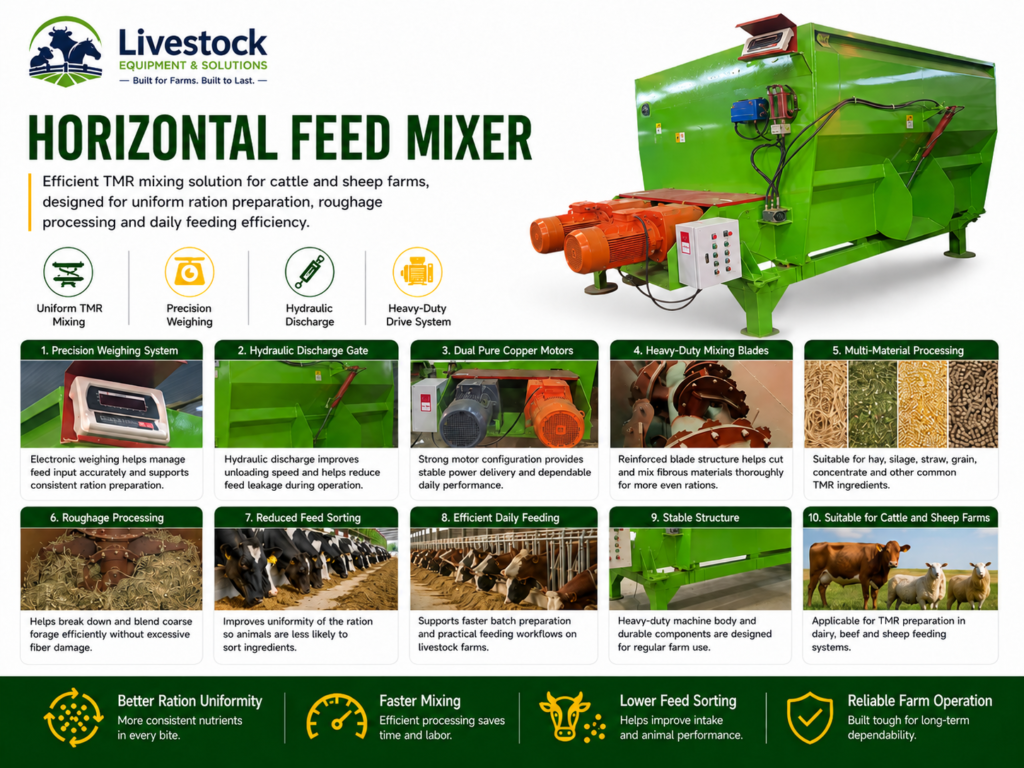

Product Features
- Twin-Shaft Horizontal Mixing: The twin-shaft structure moves feed through the chamber and helps achieve fast, even mixing.
- Hydraulic Discharge Door: The hydraulic discharge system supports quick unloading and helps reduce feed leakage during discharge.
- Electronic Weighing System: The weighing system helps measure feed weight, manage feed inventory, and control ration ingredients more accurately.
- Dual Pure Copper Motors: Dual motor drive supports stable power output and heavy-duty farm operation.
- Reducer Transmission: The motor and reducer configuration supports reliable torque transfer for continuous feed mixing.
- Thickened Plum-Blossom Blades: Reinforced blades help stir, cut, and blend chopped forage, straw, and concentrate materials.
- Multiple Model Options: 2m³, 3m³, 4m³, 5m³, 7m³, 9m³, 12m³, 14m³, 16m³, and 24m³ models are available.
- Wide Application Range: Suitable for cattle, sheep, goats, horses, donkeys, deer, pigs, and mixed livestock farms.
Configuration Options
| Configuration | Best For | Main Advantage | Buyer Notes |
|---|---|---|---|
| Single-Shaft Belt Split Type | Small farms and basic mixing needs | Simple structure and lower entry configuration | Available in 2m³ model |
| Twin-Shaft Belt Split Type | Small farms needing better mixing | Compact twin-shaft structure | Available in 2m³ model |
| Twin-Shaft Direct Reducer Type | Small and medium farms | Stronger transmission and stable mixing | Available from 3m³ to 12m³ models |
| Soft-Start Twin-Shaft Type | Larger farms and higher-load operation | Helps protect motor and reducer during startup | Available for 14m³, 16m³ and 24m³ models |
| Electronic Weighing System | Farms needing ration control | Helps measure feed weight and manage formula ingredients | Recommended for daily TMR feeding |
| Hydraulic Discharge Door | Farms needing faster unloading | Cleaner and more controlled discharge | Confirm discharge direction before quotation |
| Custom Capacity Option | Farms with specific herd size and feeding plan | Better matching to daily feed volume | Confirm batch volume, power supply, and working space |
Product Comparison
| Feature | Horizontal Feed Mixer | Vertical Feed Mixer | Truck Feed Mixer |
|---|---|---|---|
| Main Structure | Horizontal twin-shaft mixing chamber | Tower-type vertical auger mixing tub | Mobile trailed mixer structure |
| Best For | Fast mixing of chopped or pre-processed feed | Roughage cutting and larger TMR batches | Mixing, transport, and discharge in one route |
| Mobility | Fixed or semi-fixed | Fixed or feed-room based | Tractor-towed mobile operation |
| Feed Material Focus | Chopped straw, silage, hay, grain, concentrate, by-products | Long forage, straw, silage, bulky roughage | Roughage and mixed feed with mobile feeding workflow |
| Discharge Method | Hydraulic discharge door | Hydraulic discharge door | Hydraulic mobile discharge |
| Control / Weighing | Electronic weighing system | Optional control and discharge configuration | Weighing system and tractor-driven workflow |
| Capacity Range | 2m³ to 24m³ models | TMR-4 to TMR-50 models | 5m³ to 30m³ models |
| Recommended Buyer | Farms needing compact fast mixing | Farms needing strong roughage handling | Farms needing mobile feeding routes |

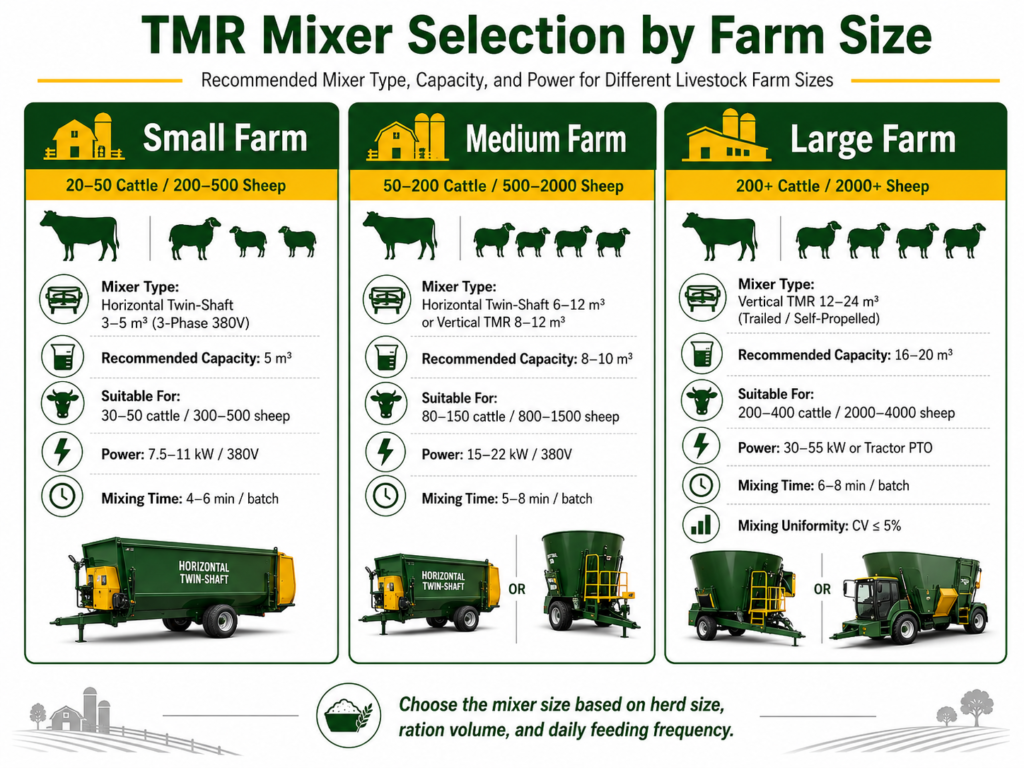

Farm Size & Capacity Reference

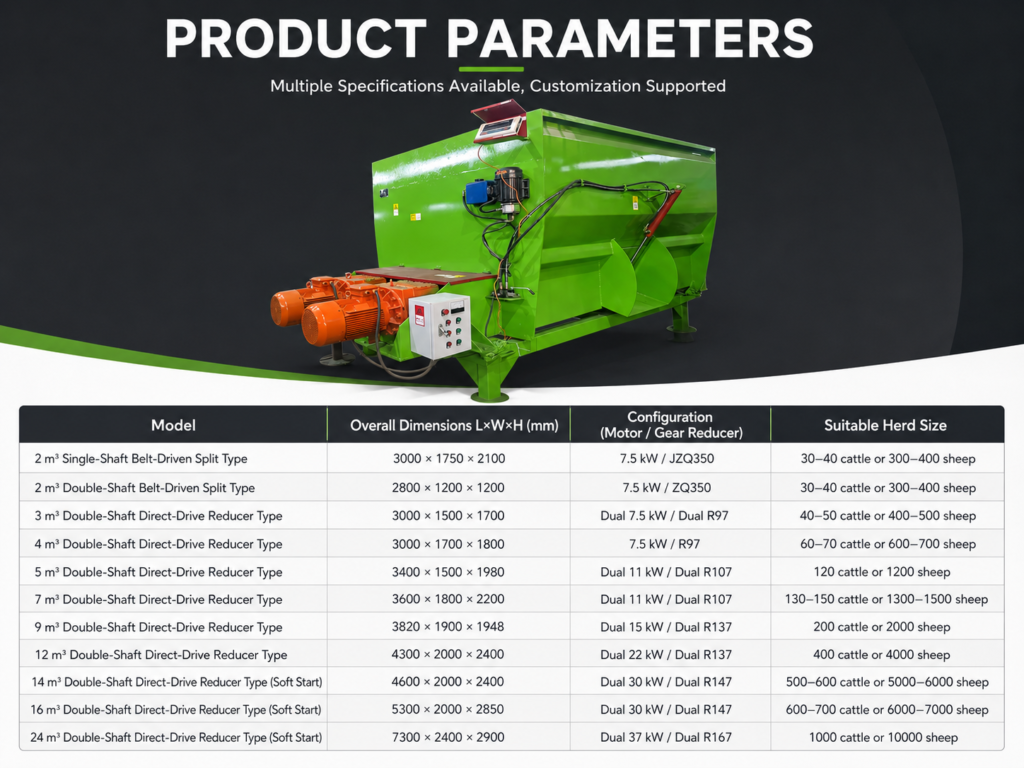

Technical Specifications
| Model | Dimensions (mm) | Motor / Reducer Configuration | Suitable Farm Scale |
|---|---|---|---|
| 2m³ Single-Shaft Belt Split Type | 3000×1750×2100 | 7.5KW / JZQ350 reducer | 30–40 cattle or 300–400 sheep |
| 2m³ Twin-Shaft Belt Split Type | 2800×1200×1200 | 7.5KW / ZQ350 reducer | 30–40 cattle or 300–400 sheep |
| 3m³ Twin-Shaft Direct Reducer Type | 3000×1500×1700 | Dual 7.5KW / dual R97 reducers | 40–50 cattle or 400–500 sheep |
| 4m³ Twin-Shaft Direct Reducer Type | 3000×1700×1800 | 7.5KW / R97 reducer | 60–70 cattle or 600–700 sheep |
| 5m³ Twin-Shaft Direct Reducer Type | 3400×1500×1980 | Dual 11KW / dual R107 reducers | 120 cattle or 1200 sheep |
| 7m³ Twin-Shaft Direct Reducer Type | 3600×1800×2200 | Dual 11KW / dual R107 reducers | 130–150 cattle or 1300–1500 sheep |
| 9m³ Twin-Shaft Direct Reducer Type | 3820×1900×1948 | Dual 15KW / dual R137 reducers | 200 cattle or 2000 sheep |
| 12m³ Twin-Shaft Direct Reducer Type | 4300×2000×2400 | Dual 22KW / dual R137 reducers | 400 cattle or 4000 sheep |
| 14m³ Twin-Shaft Direct Reducer Type with Soft Start | 4600×2000×2400 | Dual 30KW / dual R147 reducers | 500–600 cattle or 5000–6000 sheep |
| 16m³ Twin-Shaft Direct Reducer Type with Soft Start | 5300×2000×2850 | Dual 30KW / dual R147 reducers | 600–700 cattle or 6000–7000 sheep |
| 24m³ Twin-Shaft Direct Reducer Type with Soft Start | 7300×2400×2900 | Dual 37KW / dual R167 reducers | 1000 cattle or 10000 sheep |
Note: Final specifications, motor configuration, reducer option, voltage, discharge setup, weighing system, and customized dimensions can be confirmed before quotation.

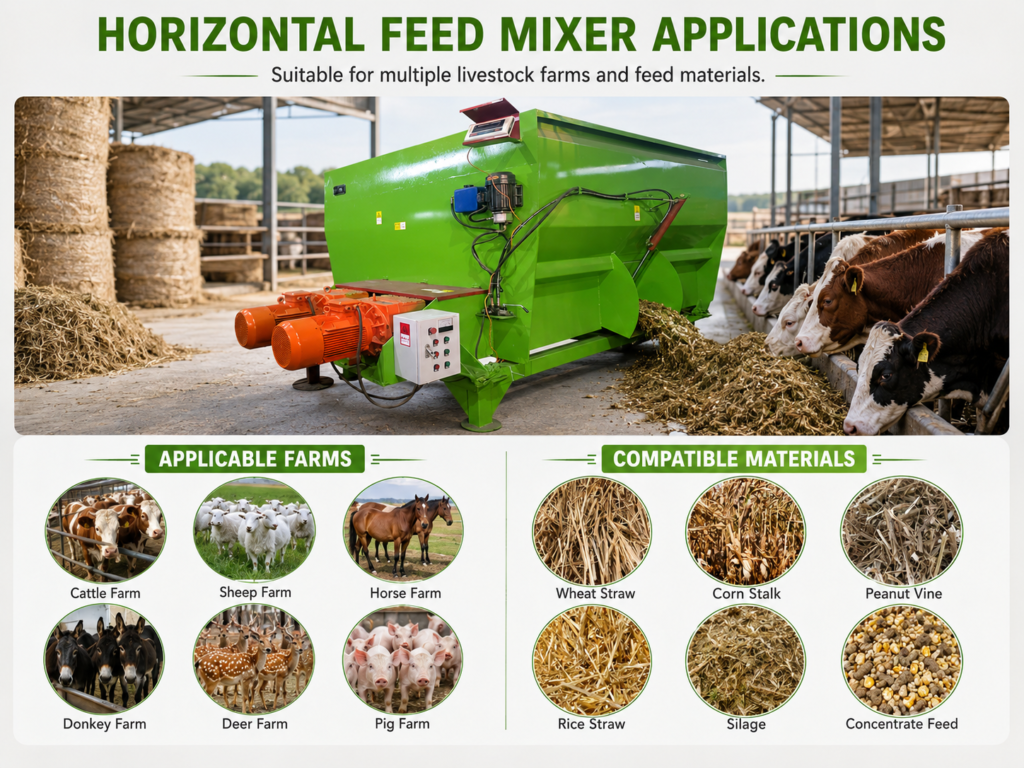

Applications
- Cattle Farms: Suitable for preparing mixed feed for beef cattle and dairy cattle operations.
- Sheep Farms: Helps prepare daily mixed ration for small, medium, and larger sheep farms.
- Goat Farms: Can be configured for mixed forage and concentrate feeding.
- Horse and Donkey Farms: Suitable for farms that need chopped forage and concentrate mixing.
- Deer Farms: Can support mixed feed preparation for deer farming operations.
- Pig Farms: Suitable for farms that require controlled feed mixing with suitable ingredients.
- Family Farms: Smaller models can support lower daily feeding volume and compact farm layouts.
- Medium Livestock Farms: 5–12m³ models can support higher daily mixing needs with stable twin-shaft operation.
Customization Options
| Custom Option | Available Choices | Buyer Notes |
|---|---|---|
| Capacity | 2m³ to 24m³ model range | Choose based on herd size and daily feeding volume |
| Shaft Structure | Single-shaft or twin-shaft | Twin-shaft models are recommended for stronger mixing performance |
| Drive Type | Belt split type or direct reducer type | Choose according to model size and farm workload |
| Motor Power | 7.5KW to dual 37KW configurations | Confirm local voltage and power supply |
| Reducer Configuration | JZQ / ZQ / R-series reducer options | Final reducer setup can be confirmed before quotation |
| Soft-Start System | Available on selected larger models | Recommended for higher-load operation |
| Weighing System | Electronic weighing configuration | Helps support ration control and feed inventory management |
| Discharge System | Hydraulic discharge door | Confirm discharge direction and feeding layout |
| Color and Branding | Custom color and OEM label | Suitable for dealers and export buyers |
| Packaging | Export packaging by order requirement | Confirm before shipment |
Why Choose Our Horizontal Feed Mixer?
- Clear Model Range: 2m³ to 24m³ configurations can support family farms, medium farms, and larger livestock operations.
- Efficient Twin-Shaft Mixing: The horizontal twin-shaft system is suitable for fast blending of chopped forage, silage, concentrate, and by-product feed.
- Practical Feed Control: Electronic weighing and hydraulic discharge help improve daily ration preparation and feed management.
- Strong Drive Configuration: Dual pure copper motors and reducer options support stable operation for farm use.
- Flexible Custom Support: Capacity, motor power, reducer setup, soft-start system, discharge method, color, logo, and packaging can be customized.
- B2B Export Support: Product photos, configuration confirmation, spare parts discussion, and remote communication are available for export buyers.
FAQ
What is a horizontal feed mixer used for?
A horizontal feed mixer is used to mix chopped straw, silage, hay, grain, concentrate, wet by-products, and feed additives for cattle, sheep, goats, horses, donkeys, deer, pigs, and mixed livestock farms.
What feed ingredients can this horizontal feed mixer process?
It can process wheat straw, corn stalks, peanut stalks, rice straw, silage, hay, distillers grains, tofu residue, concentrates, and mixed feed additives. It is more suitable for chopped or pre-processed roughage materials.
What capacity is suitable for small and medium farms?
For small farms, 3–5m³ horizontal twin-shaft models are usually practical for around 20–50 cattle or 200–500 sheep. For medium farms, 6–12m³ horizontal models can be considered based on daily feed volume, ration density, batch frequency, power supply, and working space.
Does this horizontal feed mixer include a weighing system?
An electronic weighing system can be configured to help measure feed weight, control ration ingredients, and manage feed inventory. Final weighing configuration should be confirmed before quotation.
Is hydraulic discharge available?
Yes. The hydraulic discharge door supports faster unloading and cleaner feed flow. The discharge direction and setup can be confirmed according to your barn layout and feeding route.
What is the difference between a horizontal feed mixer and a vertical feed mixer?
A horizontal feed mixer is more suitable for fast blending of chopped or pre-processed feed materials. A vertical feed mixer is often chosen for stronger roughage handling, larger batch options, and long forage processing.
Can the capacity, motor power and machine size be customized?
Yes. Capacity, machine dimensions, shaft structure, motor power, reducer configuration, soft-start option, discharge method, color, branding, and packaging can be customized based on project requirements.
