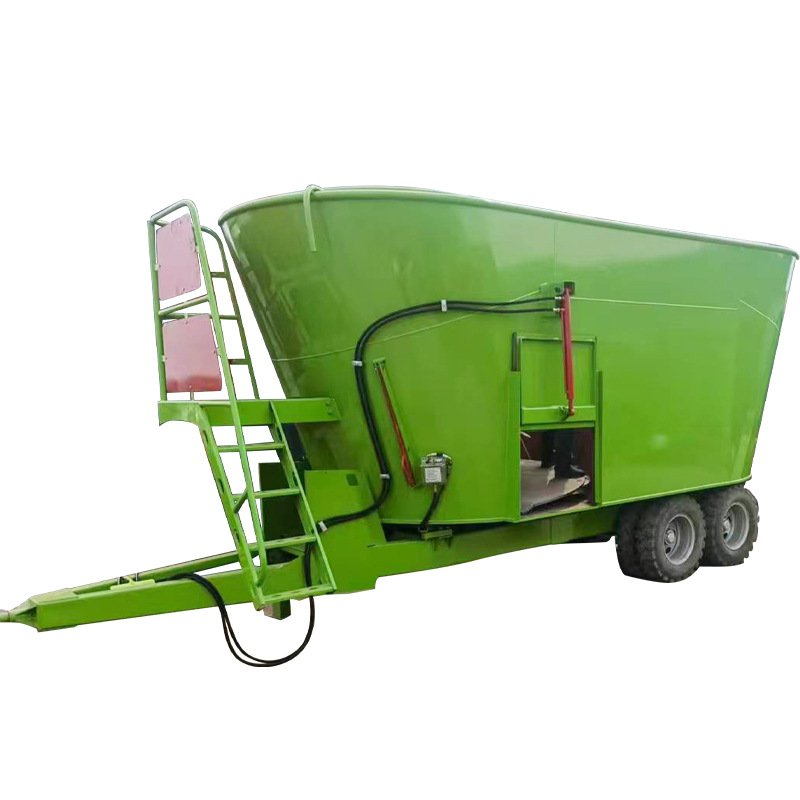

This truck feed mixer is a tractor-towed TMR feed mixer designed for cattle, sheep, dairy, and mixed livestock farms that need mobile ration mixing, weighing, transport, and discharge in one feeding route. With a trailed chassis, vertical mixing tub, hydraulic discharge, and weighing system, it can move between silage areas, barns, feed alleys, and different feeding zones. Models from 5m³ to 30m³ are available for medium and large farm operations.
Why Choose This Truck Feed Mixer
Short Benefits
- Tractor-towed mobile feeding: The trailed chassis allows the mixer to move between feed areas, barns, and feed alleys.
- Mobile TMR workflow: Mixing, weighing, transport, and discharge can be completed in one feeding route.
- Vertical auger mixing: The vertical auger helps cut, lift, blend, and discharge roughage and mixed feed ingredients.
- 4 load cell weighing system: Four weighing sensors help measure feed weight and support accurate ration preparation.
- XK3190-A6 weighing indicator: The digital indicator helps operators monitor batch weight and manage formula control.
- Hydraulic discharge door: Hydraulic discharge supports fast unloading with adjustable feed delivery speed.
- Reinforced thickened body: Thickened bottom plate, side wall, and auger blade configurations support heavy-duty farm operation.
- 5–30m³ capacity range: Multiple models can support medium and large cattle, sheep, dairy, and mixed livestock farms.
Suitable For
Dairy farms, beef cattle farms, sheep farms, goat farms, horse farms, donkey farms, deer farms, pig farms, and mixed livestock operations that need mobile TMR feed mixing and delivery.
Get a Truck Feed Mixer Recommendation
Tell us your animal type, herd size, feeding route, tractor horsepower, daily feeding volume, feed ingredients, and required batch capacity. We will recommend a suitable truck feed mixer configuration for your farm.
Product Overview
A truck feed mixer is a mobile TMR ration preparation machine designed for farms that need to mix, weigh, transport, and discharge feed in one route. This model is tractor-towed, making it suitable for farm operations that already use tractors for daily feeding, silage handling, or feed transport.
The machine uses a trailed vertical mixing structure with a large mixing tub, vertical auger, cutting knives, hydraulic discharge, load cell weighing system, digital weighing indicator, tires, transmission shaft, and reducer system. It can process roughage, silage, straw, hay, concentrate, and by-product feed ingredients for daily livestock feeding.
For farms with long feeding routes, multiple barns, or high daily feed volume, this mobile TMR feed mixer helps reduce repeated feed transfer, improve ration preparation efficiency, and support a more organized feeding workflow.

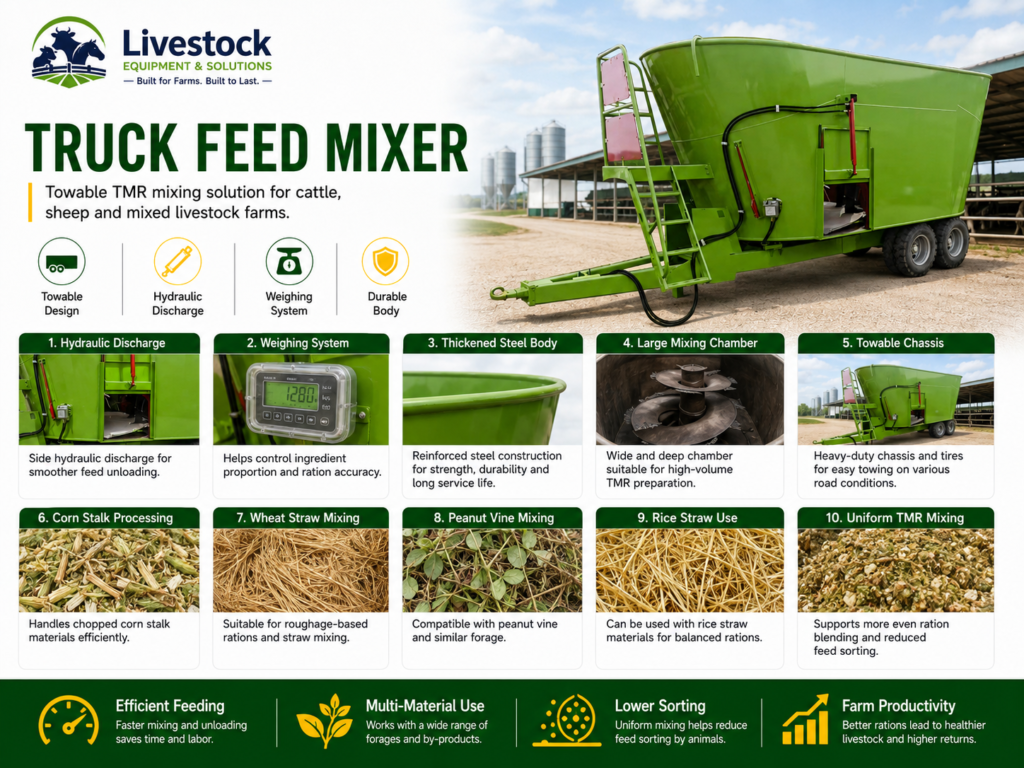

Product Features
- Tractor-Towed Trailed Chassis: The machine is designed for tractor towing and mobile feeding around barns, feed alleys, silage areas, and large farm routes.
- Vertical Auger Mixing System: The vertical auger helps move, cut, and blend roughage, silage, straw, concentrate, and mixed feed ingredients.
- Hydraulic Discharge Door: The hydraulic discharge system supports fast unloading with controlled feed flow for different feeding routes.
- 4 Load Cell Weighing System: Four load cells help measure feed weight and support more accurate ration preparation.
- XK3190-A6 Digital Indicator: The weighing indicator helps operators monitor batch weight and manage feeding formula control.
- Reinforced Thickened Body: Thickened bottom plate, side wall, and auger blade configurations support high-load daily operation.
- Heavy-Duty Tire Options: 750-16 tire and mining tire options support farm movement and larger feeding workloads.
- Transmission and Reducer System: Transmission shaft and reducer configuration support stable power transfer during mobile feed mixing.
- Wide Feed Ingredient Compatibility: The mixer can process corn stalks, baled rice straw, alfalfa, silage, peanut vines, distillers grains, tofu residue, concentrates, and mixed feed additives.
Configuration Options
| Configuration | Best For | Main Advantage | Buyer Notes |
|---|---|---|---|
| 5–7m³ Trailed Truck Feed Mixer | Smaller or medium farms needing mobile feeding | Compact mobile mixing and feeding | Confirm tractor matching and farm route |
| 9–12m³ Trailed Truck Feed Mixer | Medium cattle or sheep farms | Higher feeding capacity and practical mobility | Selected models can match 80HP+ tractor conditions |
| 14–16m³ Trailed Truck Feed Mixer | Medium to large farms | Larger tub capacity and stronger cutting setup | Confirm road width, barn entrance, and turning space |
| 20–24m³ Trailed Truck Feed Mixer | Larger cattle and sheep operations | Higher daily feeding output | Confirm tire configuration and tractor power |
| 30m³ Trailed Truck Feed Mixer | Large-scale feed routes | High-capacity mobile feeding | Suitable where higher tractor power is available |
| Hydraulic Discharge Option | Farms with different feed alley layouts | Adjustable unloading speed | Confirm discharge side and feeding route |
| Weighing System Option | Farms needing ration control | Supports formula weighing and feed inventory management | Confirm indicator, load cells, and display requirements |
Product Comparison
| Feature | Truck Feed Mixer | Vertical Feed Mixer | Horizontal Feed Mixer |
|---|---|---|---|
| Main Structure | Tractor-towed trailed vertical mixer | Fixed vertical auger mixing tub | Horizontal twin-shaft mixing chamber |
| Best For | Mobile TMR mixing, transport, and feeding | Fixed-area roughage cutting and large TMR batches | Fast mixing of chopped or pre-processed feed |
| Mobility | Tractor-towed mobile operation | Fixed or feed-room based | Fixed or semi-fixed |
| Power Source | Tractor drive / PTO workflow | Electric motor configuration | Electric motor configuration |
| Feed Material Focus | Roughage, silage, straw, concentrate, by-product feed | Long forage, straw, silage, bulky roughage | Chopped straw, silage, hay, grain, concentrate |
| Weighing System | 4 load cells + XK3190-A6 indicator | Optional by configuration | Electronic weighing system |
| Discharge Method | Hydraulic mobile discharge | Hydraulic discharge door | Hydraulic discharge door |
| Capacity Range | 5m³ to 30m³ models | TMR-4 to TMR-50 models | 2m³ to 24m³ models |
| Recommended Buyer | Farms needing mobile feeding routes | Farms needing strong roughage processing | Farms needing compact fast mixing |
Farm Size & Capacity Reference

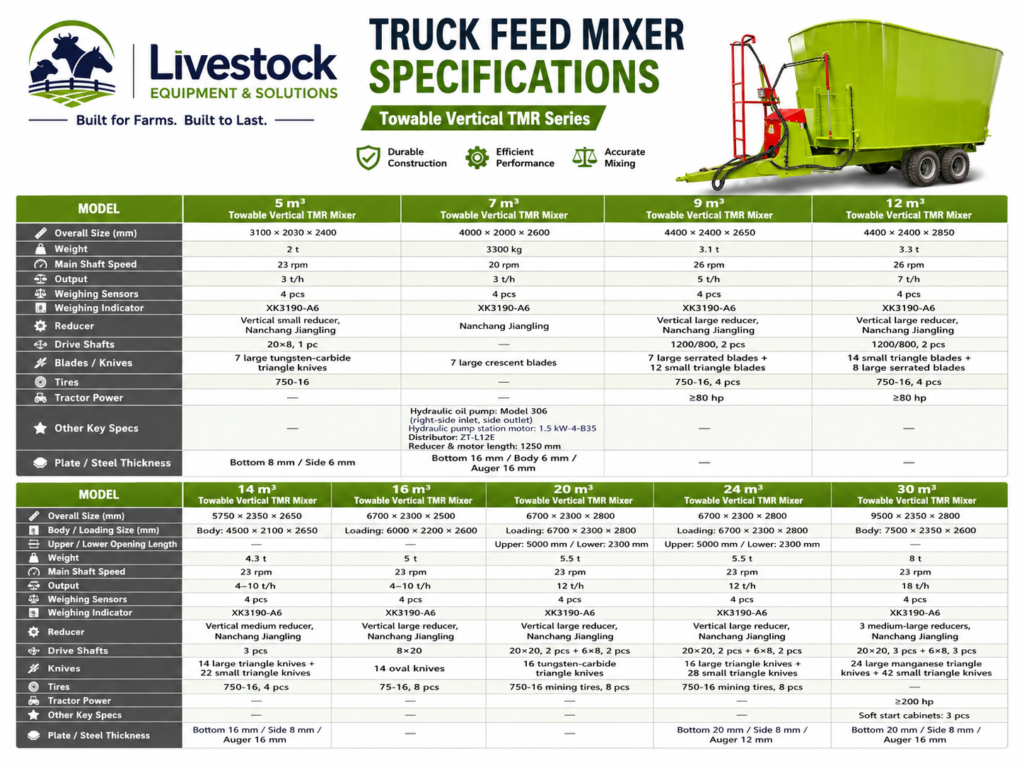

Technical Specifications
| Model | Dimensions (mm) | Tub Size / Loading Size (mm) | Machine Weight | Main Shaft Speed | Productivity | Knife Configuration | Tire Configuration | Matched Power | Plate Thickness |
|---|---|---|---|---|---|---|---|---|---|
| 5m³ Trailed Vertical TMR | 3100×2030×2400 | – | 2T | 23r/min | 3T/H | 7 carbon-tungsten large triangle knives | 750-16 tire | – | Bottom 8mm / side 6mm |
| 7m³ Trailed Vertical TMR | 4000×2000×2600 | – | 3300KG | 20r/min | 3T/H | 7 large crescent blades | – | – | Bottom 16mm / tub 6mm / auger 16mm |
| 9m³ Trailed Vertical TMR | 4400×2400×2650 | – | 3.1T | 26r/min | 5T/H | 7 large serrated knives + 12 small triangle knives | 750-16 tires × 4 | 80HP+ tractor | – |
| 12m³ Trailed Vertical TMR | 4400×2400×2850 | – | 3.3T | 26r/min | 7T/H | 14 small triangle knives + 8 large serrated knives | 750-16 tires × 4 | 80HP+ tractor | – |
| 14m³ Trailed Vertical TMR | 5750×2350×2650 | Tub 4500×2100×2650 | 4.3T | 23r/min | 4–10T/H | 14 large triangle knives + 22 small triangle knives | 750-16 tires × 4 | – | Bottom 16mm / side 8mm / auger 16mm |
| 16m³ Trailed Vertical TMR | 6700×2300×2500 | Loading 6000×2200×2600 | 5T | 23r/min | 4–10T/H | 14 oval knives | 75-16 tires × 8 | – | – |
| 20m³ Trailed Vertical TMR | 6700×2300×2800 | Upper opening 5000 / lower opening 2300 | 5.5T | 23r/min | 12T/H | 16 carbon-tungsten triangle knives | 750-16 mining tires × 8 | – | – |
| 24m³ Trailed Vertical TMR | 6700×2300×2800 | Upper opening 5000 / lower opening 2300 | 5.5T | 23r/min | 12T/H | 16 large triangle knives + 28 small triangle knives | 750-16 mining tires × 8 | – | Bottom 20mm / side 8mm / auger 12mm |
| 30m³ Trailed Vertical TMR | 9500×2350×2800 | Tub 7500×2350×2600 | 8T | 23r/min | 18T/H | 24 large triangle knives + 42 small triangle knives | – | 200HP+ tractor | Bottom 20mm / side 8mm / auger 16mm |
Note: Final specifications, tractor matching, knife configuration, tire option, discharge setup, weighing system, hitch connection, PTO compatibility, and customized dimensions can be confirmed before quotation.

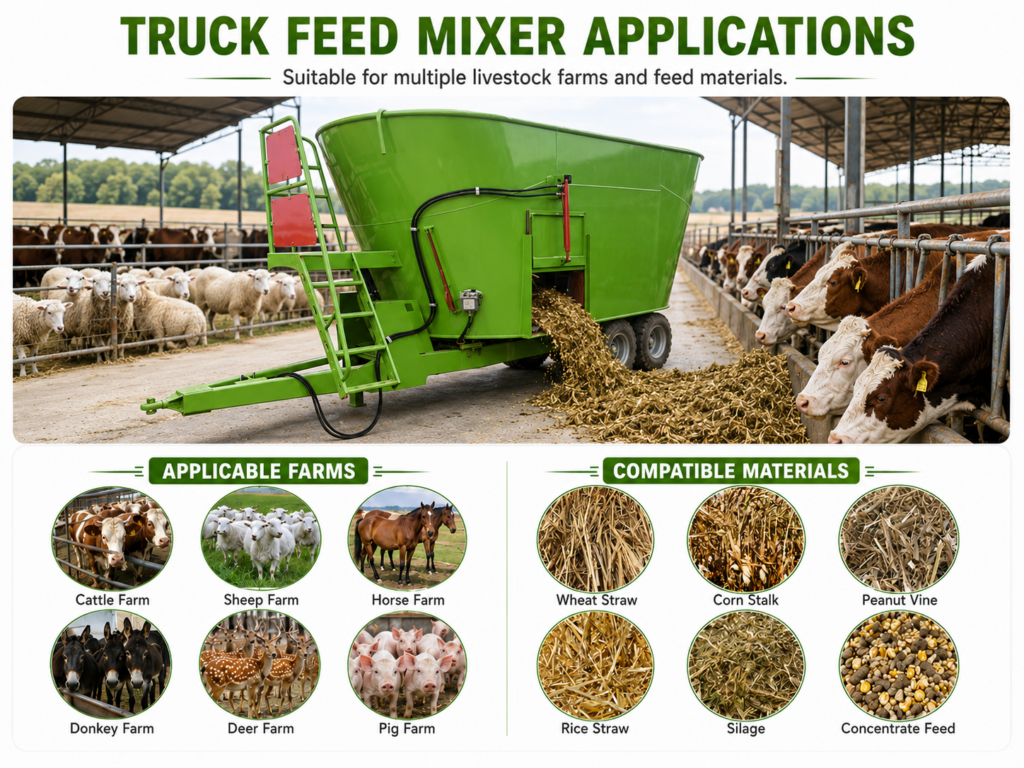

Applications
- Dairy Farms: Suitable for mobile TMR feeding routes between feed preparation areas, barns, and feed alleys.
- Beef Cattle Farms: Helps prepare and deliver mixed ration for beef cattle feeding and fattening operations.
- Sheep Farms: Suitable for larger sheep farms that need mobile feed distribution.
- Goat Farms: Can be configured for forage and concentrate feeding in mixed livestock operations.
- Horse and Donkey Farms: Suitable for farms that need roughage and concentrate mixing with mobile delivery.
- Deer Farms: Can support mixed feed preparation and distribution for deer farming operations.
- Pig Farms: Suitable for selected feed mixing and delivery requirements when configured with appropriate ingredients.
- Large Farm Feeding Routes: Practical for farms with multiple barns, longer feed alleys, or higher daily feeding volume.
Customization Options
| Custom Option | Available Choices | Buyer Notes |
|---|---|---|
| Capacity | 5m³ to 30m³ model range | Choose based on herd size, daily feed volume, and feeding route |
| Tractor Power Matching | 80HP+ and 200HP+ shown in selected configurations | Confirm tractor horsepower before quotation |
| Towing / Hitch Setup | Tractor-towed drawbar connection | Confirm local tractor connection, drawbar, PTO, and hydraulic requirements |
| Knife Configuration | Carbon-tungsten / manganese steel / serrated / triangle knife options | Match to forage type and cutting requirement |
| Tire Configuration | 750-16 tires, mining tires, 4–8 tire options | Confirm road condition and farm layout |
| Weighing System | 4 load cells + XK3190-A6 weighing indicator | Confirm indicator display and weighing requirements |
| Discharge System | Hydraulic discharge door | Confirm discharge side and feed alley design |
| Plate Thickness | Bottom, side wall, and auger blade thickness by model | Confirm final configuration before order |
| Transmission System | Transmission shaft and reducer setup | Match to model size and tractor workflow |
| Color and Branding | Custom color and OEM label | Suitable for dealers and export buyers |
| Packaging | Export packaging by order requirement | Confirm before shipment |
Why Choose Our Truck Feed Mixer?
- Mobile Feeding Workflow: The machine combines mixing, weighing, transport, and discharge, reducing repeated feed transfer on large farms.
- Tractor-Towed Farm Mobility: The trailed design supports movement between feed areas, barns, and feeding alleys.
- Accurate Ration Control: 4 load cells and an XK3190-A6 weighing indicator help support batch weighing and formula control.
- Heavy-Duty Farm Structure: Reinforced body, thickened plates, knife options, and tire configurations support high-load daily feeding.
- Flexible Model Range: 5m³ to 30m³ capacities can match medium and large livestock operations.
- Project-Based Matching: Tractor horsepower, drawbar connection, PTO compatibility, tire configuration, discharge side, and farm route can be discussed before quotation.
- B2B Custom Support: Color, branding, packaging, configuration confirmation, spare parts discussion, and export communication are available for overseas buyers.
FAQ
Is this truck feed mixer self-propelled?
No. This model is a tractor-towed, trailed vertical TMR feed mixer. It is designed for mobile farm operation, but it is different from a self-propelled feed mixer with its own engine and driving cabin.
Is this the same as a truck-mounted feed mixer?
No. A truck-mounted feed mixer is installed on a truck chassis. This product is a trailed TMR mixer pulled by a tractor. The term truck feed mixer is used here for search and mobile feeding intent, while the product structure is tractor-towed.
Can this trailed feed mixer be used with tractors in the US or Europe?
Yes, it can be used in tractor-based feeding systems when the tractor power, drawbar connection, PTO speed, hydraulic connection, and safety requirements match the selected mixer model. Final compatibility should be confirmed before quotation.
What tractor power is required?
Selected 9m³ and 12m³ models can match 80HP+ tractor conditions, while the 30m³ model is listed with 200HP+ tractor power. Final tractor matching should be confirmed according to model size, feed load, road condition, and feeding route.
Does this truck feed mixer include a weighing system?
Yes. The machine can be equipped with 4 load cells and an XK3190-A6 weighing indicator to support feed weighing, ration formula control, and feed inventory management.
What feed ingredients can it process?
It can process corn stalks, baled rice straw, alfalfa, silage, peanut vines, distillers grains, tofu residue, concentrates, and mixed feed additives. Final configuration should match forage length, moisture level, and daily feeding volume.
Which capacity should I choose?
Choose capacity based on herd size, daily feed volume, tractor power, feeding route, feed ingredient type, and batch frequency. Medium farms may consider 9–12m³ models, while larger operations may consider 14–30m³ configurations.
Is hydraulic discharge available?
Yes. Hydraulic discharge supports controlled unloading and adjustable feed delivery speed. The discharge direction and setup can be confirmed according to your feed alley and feeding route.
Can the tire configuration and machine body be customized?
Yes. Tire configuration, knife setup, plate thickness, discharge method, weighing system, color, branding, and packaging can be customized based on project requirements.
