Feed Processing Equipment
Chaff Cutter and Straw Crusher Machine for Livestock Feed
- Voltage Options220V / 380V
OEM / ODM custom manufacturing
Request a quote
Send dimensions, quantity, photos or drawings. We build to your specification.

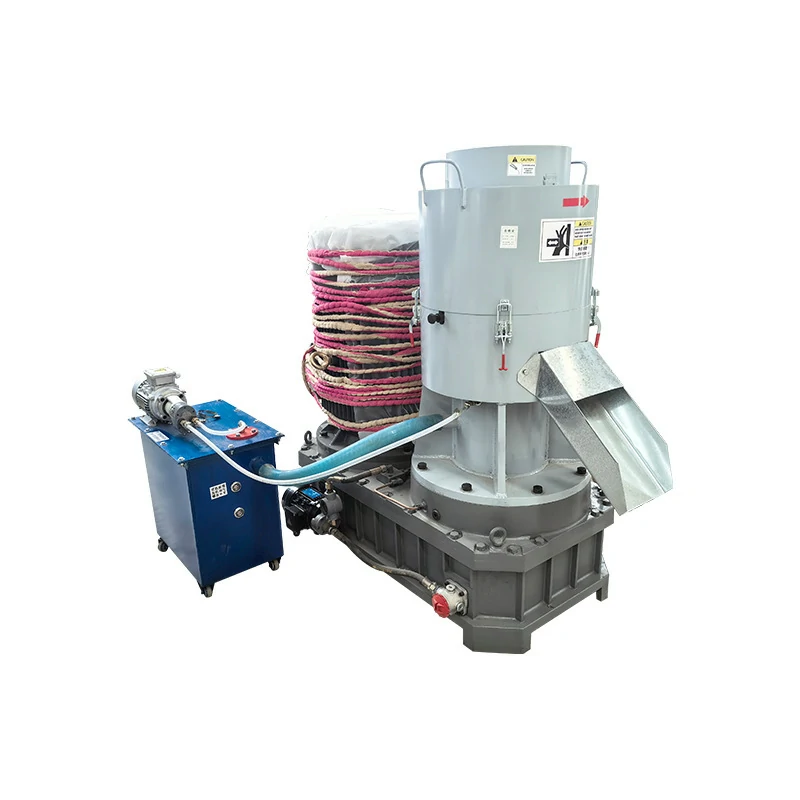

This livestock feed pellet machine is a flat die pellet mill for making feed pellets from corn, bran, grass powder, straw powder, alfalfa, rice husk, peanut shell and similar materials. It is suitable for small farms, feed rooms and livestock feed processing users.
The product is positioned primarily as a feed pellet machine for livestock equipment pages. Biomass pellet use can be mentioned as an application, but the main product page should focus on animal feed pellets.

A flat die feed pellet machine presses prepared raw materials through die holes by roller pressure. The formed pellets are then cut to length by a cutter at the outlet. The structure is simple, practical and suitable for small to medium feed pellet production.
Reference capacity classes range from about 100–200 kg/h to 800–1200 kg/h, with power references from 3 kW to 22 kW and die diameter references including 120 mm, 150 mm, 200 mm, 250 mm and 300 mm. Final capacity depends on raw material, moisture, die hole size, power and equipment configuration.

| Configuration | Best For | Main Advantage | Buyer Notes |
|---|---|---|---|
| Small Feed Pellet Machine | Small farms and household feed making | Lower power and compact use | Confirm raw material and output target |
| Medium Flat Die Pellet Mill | Farm feed rooms | Higher daily production | Confirm capacity class and power |
| Electric Motor Configuration | Farms with stable power supply | Simple operation and maintenance | Confirm voltage |
| Diesel Engine Configuration | Remote farms without stable electricity | Independent power source | Confirm engine requirement |
| Custom Die Hole Size | Different animal feed pellets | Controls pellet diameter | Confirm feed animal and formula |
| Biomass Application Support | Straw or husk pellet use | Optional non-feed application direction | Keep livestock feed as main page focus |
| Item | Available / Reference Specification |
|---|---|
| Product Type | Flat die feed pellet machine / livestock feed pellet machine |
| Main Use | Animal feed pellet production for cattle, sheep, goats, poultry and mixed livestock |
| Working Principle | Roller presses material through flat die holes, then cutter controls pellet length |
| Capacity Reference | About 100–200 kg/h, 300–400 kg/h, 500–650 kg/h and 800–1200 kg/h classes |
| Power Reference | 3 kW, 5.5 kW, 7.5 kW, 15 kW and 22 kW classes |
| Die Diameter Reference | 120 mm, 150 mm, 200 mm, 250 mm and 300 mm classes |
| Pellet Diameter Direction | Common feed pellet diameter can be selected by die hole size; final size should be confirmed before order |
| Raw Materials | Corn, wheat bran, rice, soybean, grass powder, straw powder, rice husk, corn cob, peanut shell and alfalfa |
| Power Source | Electric motor, diesel engine or gasoline engine can be discussed |
| Confirmation Items | Capacity, power, voltage, die hole diameter, roller material, machine size, weight, package and motor or engine configuration |

| Custom Option | Available Choices | Buyer Notes |
|---|---|---|
| Capacity Class | 100–1200 kg/h reference range | Confirm daily output target |
| Die Hole Diameter | Custom feed pellet diameter | Confirm animal type and formula |
| Power Source | Electric, diesel or gasoline engine | Match farm power condition |
| Voltage | Project-based electrical configuration | Confirm local power supply |
| Raw Material Formula | Corn, bran, grass, straw or mixed feed | Confirm moisture and particle size |
| Packaging | Export packing or project packaging | Confirm shipping method |
| Feature | Flat Die Feed Pellet Machine | Chaff Cutter Machine | Biomass Pellet Mill |
|---|---|---|---|
| Main Use | Press feed powder into pellets | Cut forage and straw materials | Make fuel or biomass pellets |
| Raw Material State | Powdered or prepared feed material | Long forage and stalks | Wood, husk, straw or biomass powder |
| Output Form | Animal feed pellets | Cut or crushed forage | Fuel pellets |
| Best For | Livestock feed production | Feed material preprocessing | Energy or biomass projects |
It is used to press prepared feed materials into pellets for cattle, sheep, goats, poultry and other livestock.
Common materials include corn, bran, grass powder, straw powder, rice husk, corn cob, peanut shell and alfalfa.
Reference capacity classes range from about 100–200 kg/h to 800–1200 kg/h depending on machine configuration.
Please provide raw material, required pellet diameter, capacity target, voltage, power source, quantity and destination market.
Send dimensions, quantity, photos or drawings. We reply within 24 hours on working days.
