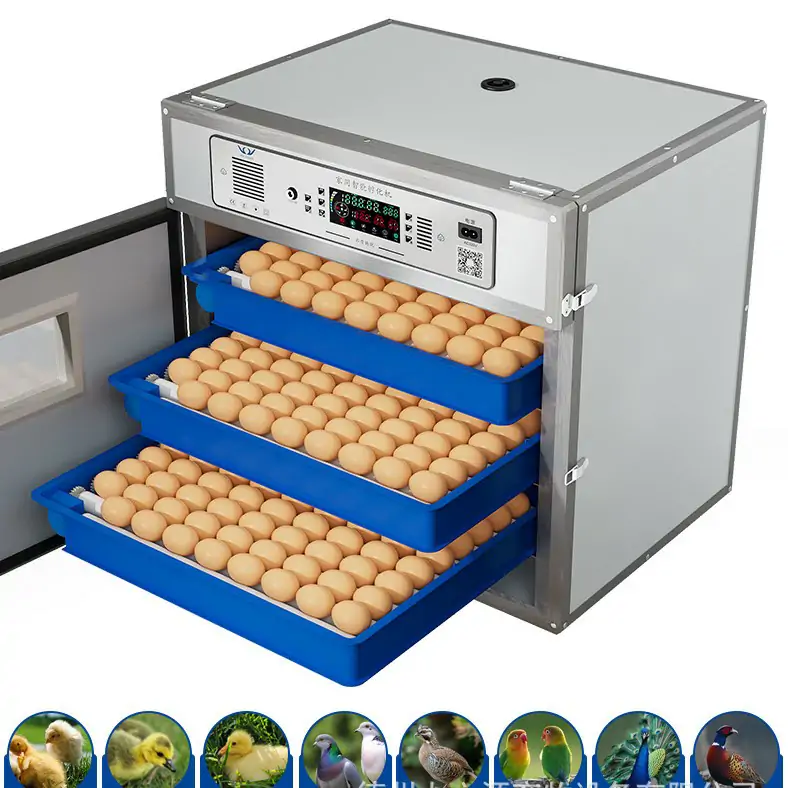

This automatic egg incubator is available in 80–6336 chicken-egg capacity for poultry farms, breeders, and hatcheries. The egg incubator machine combines intelligent temperature and humidity control, automatic egg turning, automatic water supply, and multiple airflow configurations. Larger cabinet egg incubator models are available for commercial incubation, while selected capacities offer dual-power backup for areas with an unstable electricity supply.
Product Overview
This poultry egg incubator is designed for egg incubation and, depending on configuration, hatching and brooding. With the correct egg tray, it can be used for chicken, duck, goose, quail, pigeon, parrot, peacock, pheasant, and many other poultry or bird eggs.
The intelligent controller provides a temperature control range of 0.1–49.9°C with ±0.1°C control accuracy. The chain-type automatic egg turning system operates on a 90-minute cycle, with turning interval and duration adjustable according to egg size.
Automatic water supply and humidification help maintain the preset humidity level during incubation. Selected models are also available with a circulation-fan structure that improves air movement and reduces temperature differences inside the cabinet.
For capacities that support dual power, the machine can operate from 220V AC and automatically switch to a 12V battery supply if mains electricity fails. A built-in UV disinfection lamp is also provided to help reduce bacterial contamination inside the incubator.
The standard tray configuration is designed for chicken eggs. Different egg sizes require the corresponding tray configuration.
Product Features
- Intelligent Temperature & Humidity Control: Displays current and preset temperature and humidity for easier incubation management.
- Automatic Egg Turning: 90-minute chain-type turning system with adjustable interval and operating duration.
- Automatic Water Supply: Automatically supplies water to the humidity system when required.
- Automatic Humidification: Adds humidity when the measured level falls below the preset value.
- Selectable Airflow Configuration: Standard airflow and circulation-fan versions are available on applicable capacities.
- Dual-Power Option: Selected 80–400 egg capacities are available with 220V AC + 12V DC backup input.
- 3-in-1 Configuration: Selected models combine incubation, hatching, and brooding functions.
- UV Disinfection Lamp: Built-in ultraviolet lamp helps reduce bacterial contamination inside the cabinet.
- Transparent Viewing Window: Check the incubation process without repeatedly opening the machine.
- Pull-Out Egg Trays: Makes loading, checking, and tray adjustment easier.
- Adjustable Tray Spacing: Helps accommodate different egg sizes when used with the appropriate tray.
- Automatic Alarm: Alerts the operator when abnormal operating conditions are detected.
- Incubation Day Counter: Automatically records incubation days.
- Six Operating Modes: Supports simplified one-key incubation control.
Configuration Options
| Configuration | Available Options |
|---|---|
| Chicken-Egg Capacity | 80 / 160 / 240 / 320 / 400 / 528 / 880 / 1056 / 1232 / 1584 / 1848 / 2112 / 3168 / 4224 / 5280 / 6336 |
| Power Supply | 80–400: Single power 220V AC or dual power 220V AC + 12V DC |
| 528–2112 Machine Type | Standard incubation model / 3-in-1 model |
| 3168–6336 Machine Type | 3-in-1 model |
| 528–2112 Airflow | Standard airflow / circulation fan |
| 3168–6336 Airflow | Confirm configuration before ordering |
| Main Materials | Color steel plate / electrophoresis aluminum |
| Control | Intelligent temperature and humidity controller |
| Egg Turning | Chain-type automatic turning |
| Humidity | Automatic water supply + automatic humidification |
| Disinfection | Built-in UV lamp |
| Default Egg Tray | Chicken egg tray |
| Other Egg Types | Matching tray required according to egg size |
Capacity figures are based on chicken eggs unless otherwise stated.
Product Comparison
Single Power vs Dual Power
| Feature | Single Power | Dual Power |
|---|---|---|
| Power Supply | 220V AC | 220V AC + 12V DC |
| Power Failure | Requires external backup solution | Automatically switches to 12V battery |
| Suitable For | Areas with stable electricity | Areas with frequent power interruptions |
| Battery Cable | Not included | Included |
| Battery | Not included | Not included |
| Applicable Capacity | 80–400 | 80–400 |
Standard Incubation Model vs 3-in-1 Model
| Feature | Standard Incubation Model | 3-in-1 Model |
|---|---|---|
| Main Function | Incubation-focused configuration | Incubation + hatching + brooding |
| Hatching Basket | One large hatching basket | One hatching basket per layer |
| Loading Method | Staggered loading | Whole-batch loading |
| Hatching Method | Staggered hatching | Whole-batch hatching |
| Tray Spacing | Approx. 10.5 cm | Approx. 16 cm |
| Suitable For | Users who prefer staggered production | Users who prefer complete batch operation |
Standard Airflow vs Circulation Fan
| Feature | Standard Airflow | Circulation Fan |
|---|---|---|
| Internal Structure | Incubation and working area together | Left-right separated structure |
| Air Circulation | Standard | Enhanced circulation |
| Temperature Uniformity | Standard | More uniform |
| Suitable For | Budget-focused configurations | Users prioritizing more uniform cabinet conditions |
Capacity & Egg Type Reference
The rated capacity is based on chicken eggs. Duck, goose, pigeon, and quail figures below are proportional reference values only. Actual capacity depends on the egg size and tray configuration.
| Chicken Eggs | Duck Eggs | Goose Eggs | Pigeon Eggs | Quail Eggs |
|---|---|---|---|---|
| 80 | 57 | 29 | 102 | 201 |
| 160 | 114 | 58 | 204 | 402 |
| 240 | 172 | 87 | 305 | 603 |
| 320 | 229 | 116 | 407 | 804 |
| 400 | 286 | 145 | 509 | 1005 |
| 528 | 378 | 192 | 672 | 1326 |
| 880 | 630 | 320 | 1120 | 2210 |
| 1056 | 756 | 384 | 1344 | 2652 |
| 1232 | 882 | 448 | 1568 | 3094 |
| 1584 | 1134 | 576 | 2016 | 3978 |
| 1848 | 1323 | 672 | 2352 | 4641 |
| 2112 | 1512 | 768 | 2688 | 5304 |
| 3168 | 2268 | 1152 | 4032 | 7956 |
| 4224 | 3024 | 1536 | 5376 | 10608 |
| 5280 | 3780 | 1920 | 6720 | 13260 |
| 6336 | 4536 | 2304 | 8064 | 15912 |
For parrot, canary, finch, turkey, guinea fowl, peacock, pheasant, ostrich, emu, swan, and other specialty bird eggs, confirm the correct egg tray before ordering.
Technical Specifications
| Item | Details |
|---|---|
| Product Type | Automatic Egg Incubator / Poultry Egg Incubator |
| Main Function | Egg incubation |
| Additional Function | Hatching and brooding on 3-in-1 configurations |
| Main Materials | Color steel plate / electrophoresis aluminum |
| Rated Voltage | 220V AC |
| Backup Input | 12V DC on supported dual-power models |
| Temperature Control Range | 0.1–49.9°C |
| Temperature Control Accuracy | ±0.1°C |
| Egg Turning | 90-minute chain-type automatic turning |
| Turning Adjustment | Interval and duration adjustable |
| Water Supply | Automatic |
| Humidification | Automatic |
| Disinfection | Built-in UV lamp |
| Controller | Celsius / Fahrenheit switchable |
| Display | Current temperature, current humidity, preset temperature, preset humidity, incubation days, incubation time |
| Alarm | Automatic alarm for abnormal conditions |
| Default Tray | Chicken egg tray |
| Suitable Eggs | Chicken, duck, goose, pigeon, quail and other poultry or bird eggs with matching trays |
Applications
Chicken Egg Incubation
The standard tray is designed for chicken eggs, making the machine suitable for use as a chicken egg incubator in poultry farms and hatchery operations.
Duck and Goose Egg Incubation
With the correct tray and spacing, the machine can also be configured as a duck egg incubator or goose egg incubator.
Quail Egg Incubation
Matching small-egg trays allow the machine to be used as a quail egg incubator, including higher-capacity configurations for farm production.
Pigeon and Specialty Bird Eggs
Different tray configurations can accommodate pigeon, parrot, peacock, pheasant and other bird eggs according to their size.
Commercial Poultry Hatcheries
Higher-capacity configurations from 528 to 6336 chicken eggs are suitable for poultry farms and hatchery operations that require a larger commercial egg incubator or cabinet-style incubation system.
Configuration & Customization Options
Available configuration choices include:
- Chicken, duck, goose, quail, pigeon and other egg trays
- Single or dual power on supported capacities
- Standard incubation or 3-in-1 configuration
- Standard airflow or circulation-fan configuration on applicable capacities
- Capacity selection from 80 to 6336 chicken eggs
- Adjustable egg tray spacing for different egg sizes
For non-standard egg types or capacity requirements, confirm the required tray and machine configuration before ordering.
Why Choose Our Product
- Broad 80–6336 chicken-egg capacity range
- Intelligent temperature and humidity control
- ±0.1°C temperature control accuracy
- Automatic egg turning
- Automatic water supply and humidification
- Dual-power option on supported capacities
- Standard and circulation-fan configurations
- Incubation and 3-in-1 configurations
- Multiple tray options for different poultry and bird eggs
- Transparent viewing windows and pull-out tray structure
- Automatic alarm and incubation day counter
Common Questions
The available capacities are 80, 160, 240, 320, 400, 528, 880, 1056, 1232, 1584, 1848, 2112, 3168, 4224, 5280, and 6336 chicken eggs.
Yes. The rated capacity is based on chicken eggs. Capacity changes with egg size and tray configuration, so duck, goose, quail, pigeon, and other egg types require the corresponding tray and may have a different actual capacity.
Yes. The default configuration uses chicken egg trays. Other egg types require matching trays according to egg size. Confirm the required egg species before ordering.
The confirmed dual-power option is available on the 80, 160, 240, 320, and 400 chicken-egg capacities. These versions support 220V AC and a 12V battery input for backup operation.
The standard incubation configuration is designed mainly for incubation and staggered operation. The 3-in-1 version combines incubation, hatching, and brooding and is designed for whole-batch operation with a hatching basket on each layer.
Standard models use a conventional internal airflow structure. Circulation-fan models use additional internal air circulation to reduce temperature differences and provide more uniform conditions inside the cabinet.
Please provide the egg species, required egg capacity, preferred machine configuration, and whether you need a dual-power version. For eggs other than chicken eggs, also confirm the required tray type.
