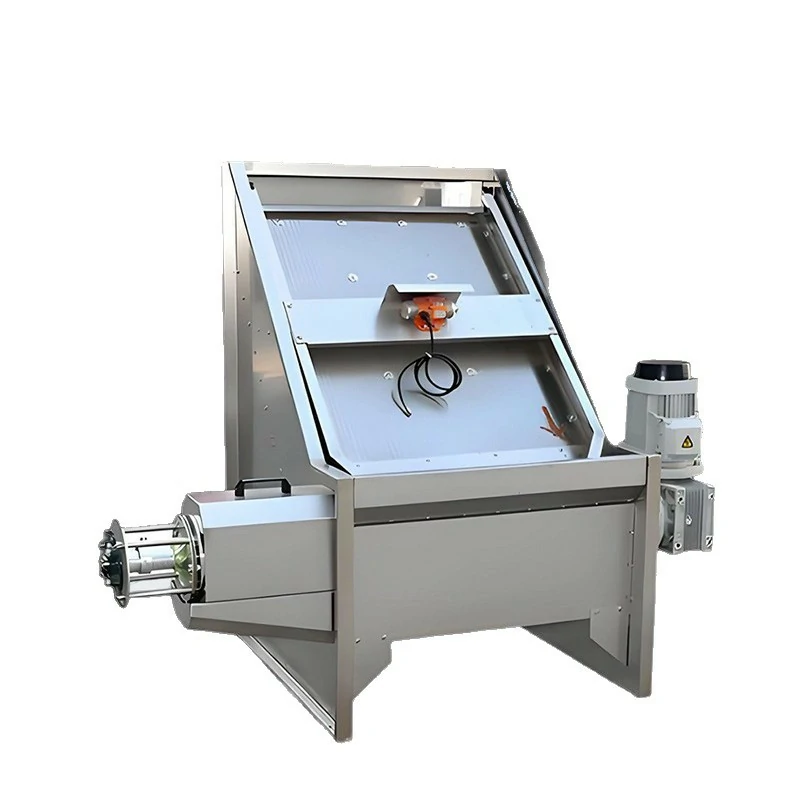

Inclined Screen Manure Separator for Livestock Wastewater
OEM / ODM custom manufacturing
- Treatment Capacity Reference
- 40 m³/h class reference; actual capacity depends on material and conf…
- Power Reference
- 5.5 kW reference; similar configurations may use 5.5–7.5 kW
- Material Direction
- Stainless steel housing or stainless contact parts can be configured
- Suitable Materials
- Pig manure, cow manure, poultry manure, fruit residue, medicine resid…
- Main Use
- Livestock manure wastewater, slurry and organic residue dewatering
- Process Flow
- Inclined screen pre-separation, screw conveying, extrusion dewatering…
Request a quote
Send dimensions, quantity, photos or drawings. We build to your specification.
Product description
This manure separator is an inclined screen solid-liquid separation machine for livestock manure wastewater, slurry and organic residue dewatering. It is designed for pig farms, cattle farms, poultry farms, biogas projects, food residue and agricultural wastewater handling.
The system combines inclined screen pre-separation, screw conveying, extrusion dewatering and cleaning support to separate liquid and solid fractions before further manure handling or processing.
Product Overview

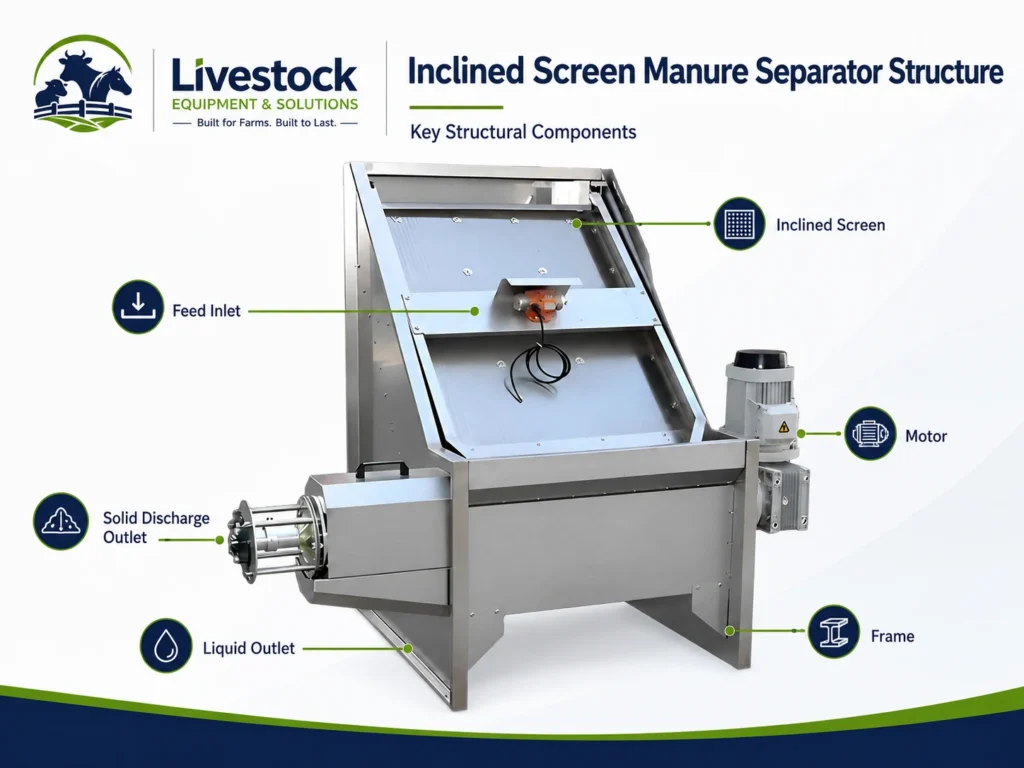

An inclined screen manure separator uses a sloped screen surface to remove larger solids from wastewater before the remaining solids enter the screw pressing section. This reduces the load on the screw press and helps improve separation efficiency for manure slurry and organic wastewater.
Reference data includes a 40 m³/h treatment class and 5.5 kW power direction, with some similar configurations using 5.5–7.5 kW depending on material and layout. Final capacity, moisture reduction, screen opening and dewatering effect depend on manure type, solid content and adjustment method.

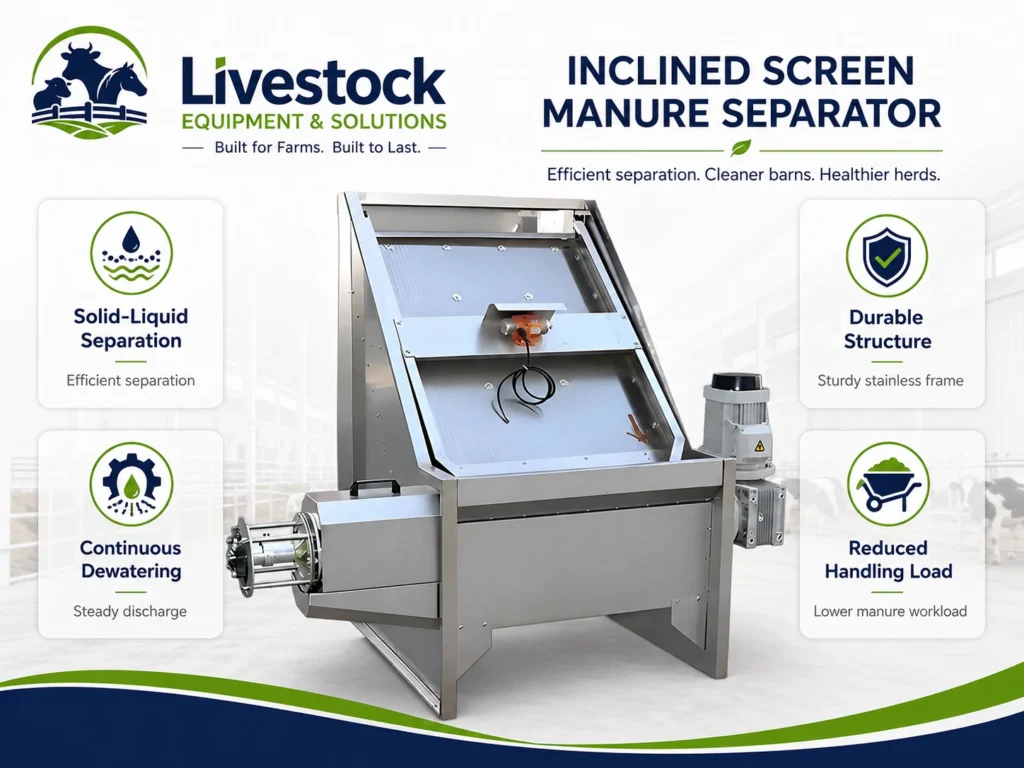

Product Features
- Inclined Screen Pre-Separation: The sloped screen removes larger solids before screw pressing.
- Screw Press Dewatering: Solid material is conveyed and pressed to reduce moisture.
- Livestock Manure Use: Suitable for pig manure, cow manure, poultry manure and slurry wastewater.
- Organic Residue Handling: Can also be used for fruit residue, medicine residue, distiller residue and food processing waste.
- Automatic Cleaning Direction: Cleaning support can help reduce screen blockage and residue buildup.
- Stainless Contact Parts: Screen, screw shaft and contact areas can use stainless steel by configuration.
- Moisture Adjustment: Outlet structure can help adjust discharged solids according to material condition.
- Project-Based Configuration: Capacity, screen, voltage, pump and installation layout can be customized.
Why Choose Our Product
- Clear Manure Handling Purpose: This page focuses on manure and livestock wastewater separation, not oil-water separators or laboratory equipment.
- Two-Stage Separation Direction: Inclined screening and screw pressing support more complete solid-liquid separation.
- Livestock Wastewater Fit: Suitable for pig, cattle and poultry manure handling projects.
- Project Configuration Support: Capacity, screen, material and electrical details can be matched to the farm project.
Specifications
Configuration Options
| Configuration | Best For | Main Advantage | Buyer Notes |
|---|---|---|---|
| Inclined Screen Separator | Livestock wastewater pre-separation | Reduces solid load before screw pressing | Confirm screen size and wastewater flow |
| Screw Press Dewatering Section | Higher solid dryness requirement | Presses separated solids | Confirm manure type and moisture target |
| Stainless Contact Parts | Corrosive manure wastewater | Improves corrosion resistance | Confirm material grade |
| Automatic Cleaning Option | Continuous farm operation | Reduces screen blockage risk | Confirm water supply and cleaning method |
| Custom Capacity System | Farm projects and manure treatment lines | Matches wastewater volume | Provide flow and solid content |
Technical Specifications
| Item | Available / Reference Specification |
|---|---|
| Product Type | Inclined screen solid-liquid separator / manure dewatering separator |
| Main Use | Livestock manure wastewater, slurry and organic residue dewatering |
| Treatment Capacity Reference | 40 m³/h class reference; actual capacity depends on material and configuration |
| Power Reference | 5.5 kW reference; similar configurations may use 5.5–7.5 kW |
| Process Flow | Inclined screen pre-separation, screw conveying, extrusion dewatering and cleaning support |
| Material Direction | Stainless steel housing or stainless contact parts can be configured |
| Suitable Materials | Pig manure, cow manure, poultry manure, fruit residue, medicine residue, distiller residue, slaughter wastewater and biogas slurry residue |
| Moisture Result | Final solid moisture varies by material and adjustment method |
| Customization | Capacity, screen opening, contact material, voltage, control box, pump, inlet/outlet direction and frame |
Customization
Customization Options
| Custom Option | Available Choices | Buyer Notes |
|---|---|---|
| Treatment Capacity | Project-based flow rate | Provide wastewater volume and solid content |
| Screen Material and Opening | Custom screen specification | Match manure type and particle size |
| Screw Press Section | Project-based screw configuration | Confirm dewatering target |
| Voltage and Power | Custom electrical configuration | Confirm local power supply |
| Pump and Control Box | Optional by system design | Confirm installation layout |
| Frame and Packaging | Custom installation and export packing | Confirm site and shipment method |
Applications
Product Comparison
| Feature | Inclined Screen Manure Separator | Simple Screen Separator | Solid-Liquid Separator Category |
|---|---|---|---|
| Main Use | Manure wastewater screening and screw dewatering | Basic filtration or screening | All separator types |
| Structure | Inclined screen plus screw press | Screen only | Screw press, inclined screen or other systems |
| Best For | Livestock manure and organic wastewater | Lower-solid liquid filtering | Category browsing and equipment selection |
| Customization | Capacity, screen, screw, pump and material | Screen size and frame | Depends on equipment type |
Applications
- Pig farm manure wastewater treatment
- Cattle farm slurry separation
- Poultry manure and wastewater handling
- Biogas slurry residue separation
- Food and fruit residue dewatering
- Distiller grain or medicine residue dewatering
- Farm manure treatment projects
FAQ
What is this manure separator used for?
It is used to separate solids and liquids from livestock manure wastewater, slurry and organic residue materials.
What treatment capacity can be configured?
A 40 m³/h class reference is available, but final capacity depends on manure type, solid content and equipment configuration.
What materials can it handle?
It can handle pig manure, cow manure, poultry manure, biogas slurry residue, fruit residue, medicine residue, distiller residue and similar organic wastewater.
What information should I provide before quotation?
Please provide manure type, wastewater flow, solid content, required capacity, voltage, material preference, installation layout and destination market.
