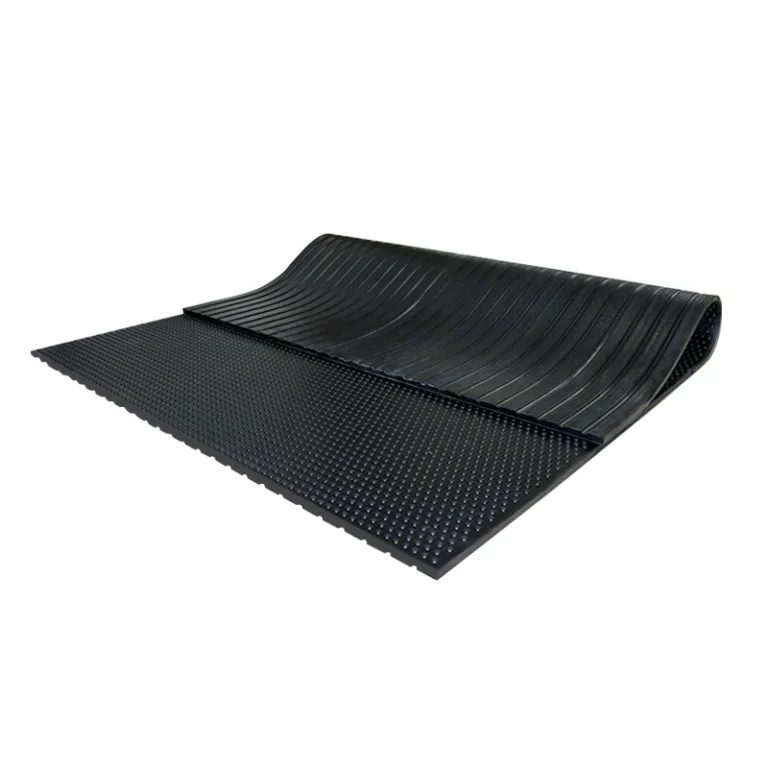

Cow Mat for Cattle Barns and Livestock Rubber Flooring
- MaterialRubber
- Width Range1.22–1.83 m
- Built to order in our own factory
- Drawings and photos confirmed before shipping
- Reply within 24 hours on working days
Automatic Manure Scraper System for Cattle Barns
OEM / ODM custom manufacturing
- Voltage
- 380V
- Power
- 1.5 kW
- Transport Length
- 10–260 m
- Weight Reference
- Approximately 860 kg
- Optional Configuration
- Emergency stop, anti-freezing device, automatic lubrication and custo…
- Main Use
- Barn manure alley cleaning and manure collection
Request a quote
Send dimensions, quantity, photos or drawings. We build to your specification.
Product description

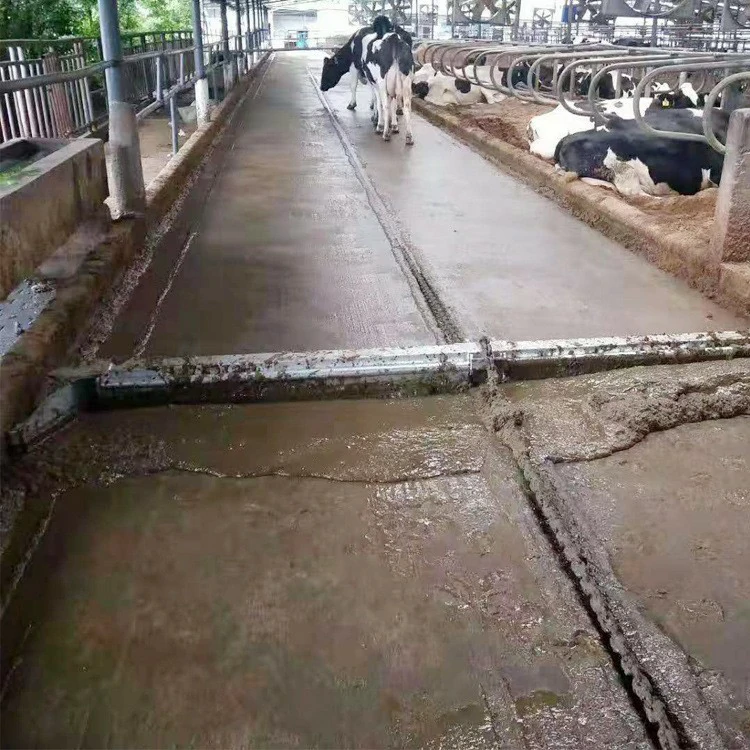

This manure scraper is an automatic barn cleaning system designed for cattle barns, dairy farms, horse facilities, donkey barns, mule barns and large livestock farms. It uses a drive unit, chain or traction structure, control cabinet and scraper blade to move manure through a closed-loop alley cleaning path and collect manure into a channel or handling area. The system supports automatic operation, manual mode switching, adjustable speed and 1–4 scraper lane layouts.
Product Overview
This automatic manure scraper system is designed for livestock barns that need scheduled, repeatable and labor-saving manure removal. The system uses a main drive unit, control cabinet, traction chain or wire-rope structure, guide wheel, tensioning system and scraper blade to move manure along the barn alley and push it into a manure collection channel.
The scraper runs through a closed-loop cleaning path. During operation, manure, urine, bedding residue and wastewater are moved toward the collection area, helping farms keep barn alleys cleaner and more manageable. The control system can support automatic operation, manual mode switching, animation display, automatic memory, alarm record and emergency stop functions.
This system is suitable for cattle, horses, donkeys and mules, especially in dairy barns, beef cattle barns, horse facilities and livestock farms with fixed manure alleys. It is most suitable for farms planning automatic manure removal during new barn construction or barn cleaning system renovation.

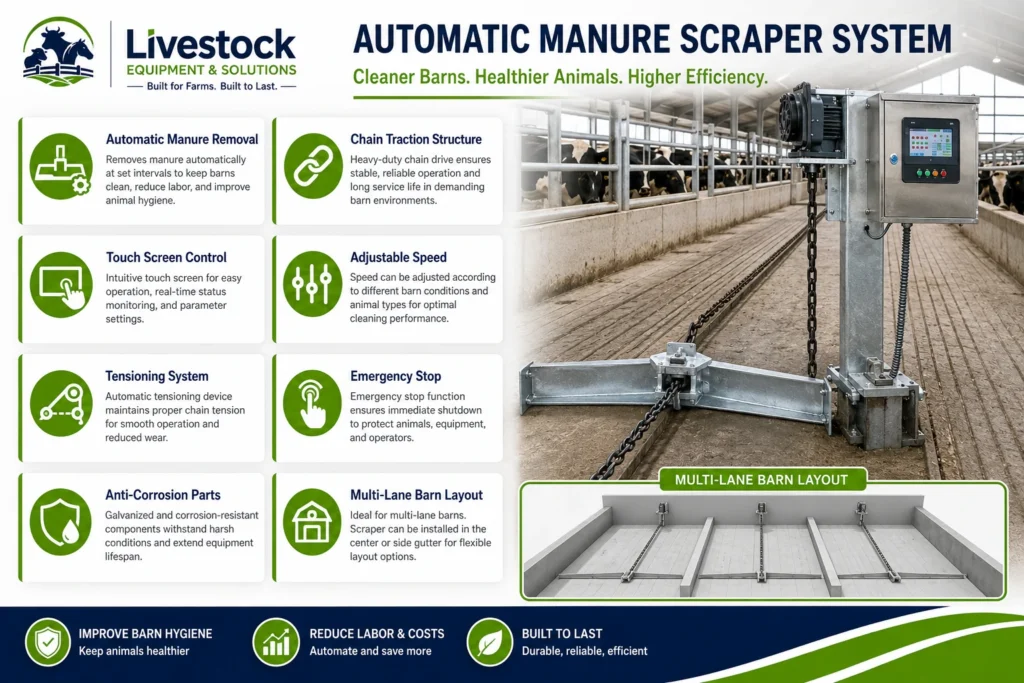

Product Features
- Closed-Loop Alley Cleaning: The scraper works through a closed-loop movement path to collect manure into a manure channel or handling area.
- Automatic and Manual Operation: The system can run automatically according to cleaning settings, and manual mode can be used for temporary cleaning or maintenance needs.
- Touch-Screen Control Cabinet: The control cabinet can display operation status and help farm staff monitor the cleaning process.
- Animation Display: The control interface can show a visual running status, making system operation easier to understand.
- Automatic Memory Function: The system can record operating settings and running status to support repeated cleaning routines.
- Alarm Record and Analysis: If a fault or alarm appears during operation, the system can record the event and support fault analysis.
- Emergency Stop Function: Emergency stop configuration helps improve safety during inspection, cleaning, maintenance or unexpected operation conditions.
- Adjustable Running Speed: The running speed can be adjusted according to manure volume, alley condition and cleaning frequency.
- Galvanized Chain Drive: A galvanized chain drive can be used for traction, suitable for humid, muddy and manure-rich barn environments.
- Sprocket and Chain Engagement: Sprocket-chain engagement helps reduce slipping and idle running compared with loose traction contact.
- Tensioning System: The tensioning structure helps reduce chain looseness and supports long-term stable operation.
- Automatic Blade Lifting or Retraction: The scraper blade can be configured to lift or retract automatically according to running direction and system design.

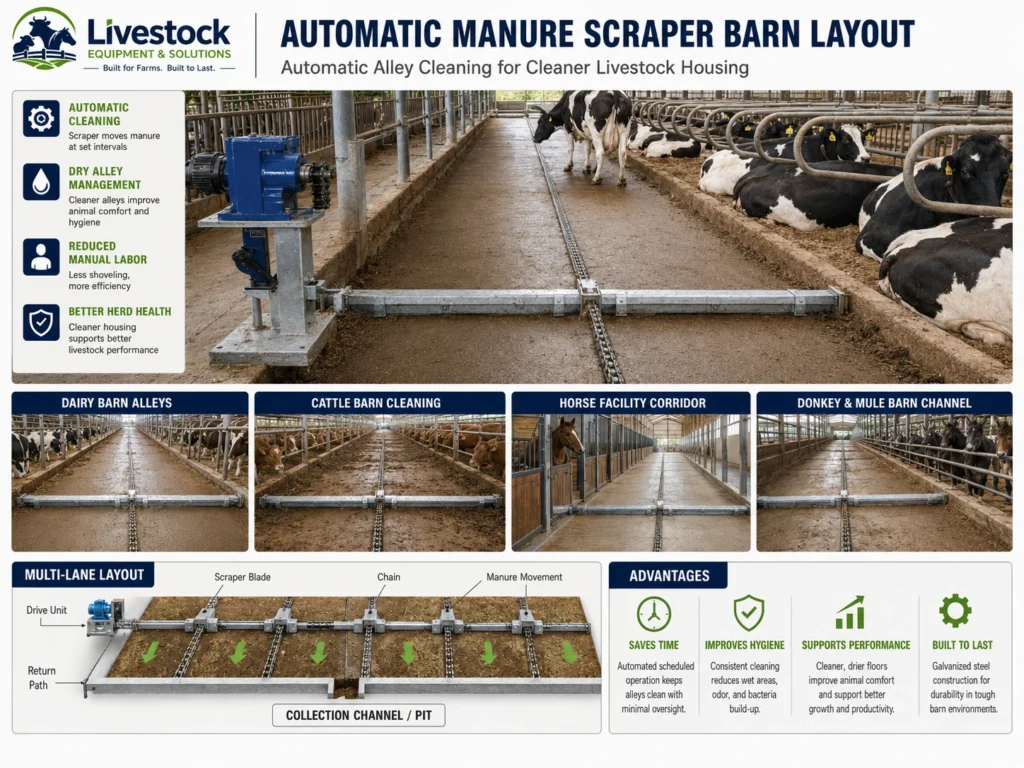

- Multi-Lane Barn Layout: One drive unit can support 1–4 scraper blades or scraper lanes according to barn structure.
- Optional Lubrication and Anti-Freezing Support: Automatic lubrication and anti-freezing configurations can be discussed for long-term or cold-climate use.
Control System & Operation Features
| Function | Practical Value |
| Touch-Screen Control | Allows operators to view and manage the system more easily |
| Animation Display | Shows the running status visually on the control interface |
| Automatic Memory | Helps retain operation settings and support repeated cleaning routines |
| Alarm Record | Records fault or alarm information during system operation |
| Automatic Fault Analysis | Supports quicker troubleshooting when abnormal operation occurs |
| Automatic / Manual Mode Switching | Allows scheduled cleaning and temporary manual operation |
| Timed Cleaning | Cleaning time can be set according to barn management needs |
| Temporary Cleaning | Manual or temporary cleaning can be used when manure accumulation changes |
| Emergency Stop | Allows quick system shutdown during maintenance or unexpected conditions |

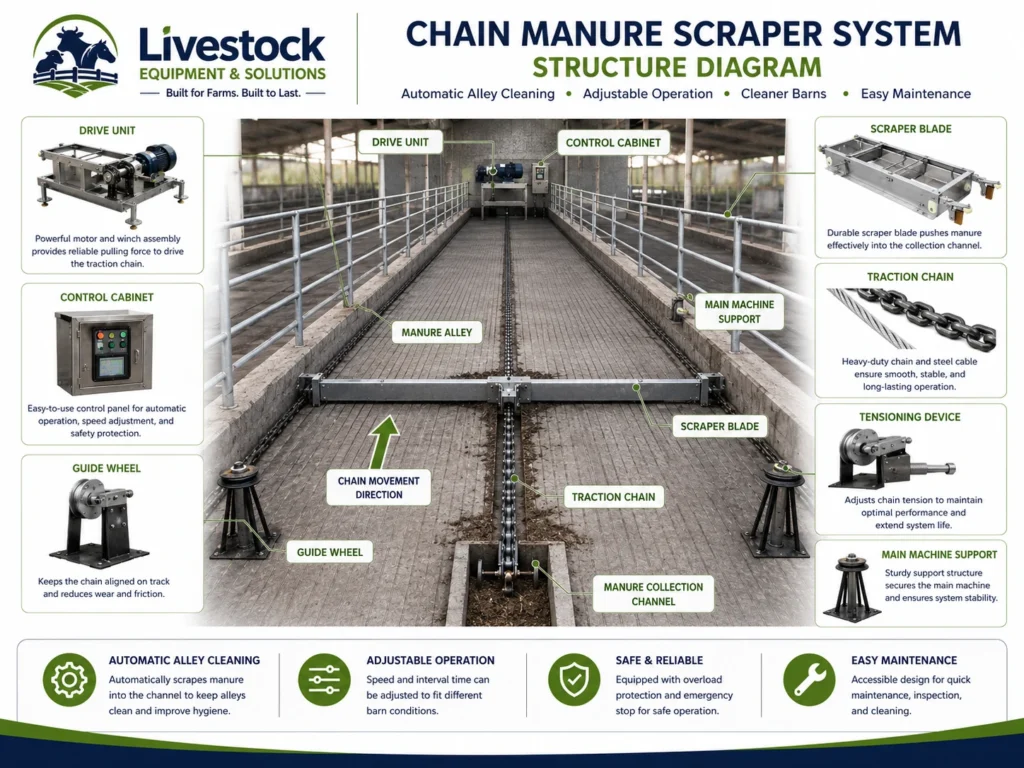

Chain Drive Structure
| Structure Point | Description |
| Galvanized Chain Drive | Suitable for wet, muddy and manure-rich barn environments |
| Sprocket Engagement | The sprocket engages with the chain to reduce slipping and idle running |
| Guide Wheel Layout | Helps direct scraper movement along the barn alley |
| Tensioning Device | Helps maintain chain stability during long-term operation |
| Closed-Loop Movement | Supports continuous scraping along the designed manure alley path |
| Scraper Blade Assembly | Pushes manure, urine, bedding residue and wastewater toward the collection channel |
| Blade Lifting / Retraction | Can be configured to match running direction and barn cleaning workflow |
| Chain or Wire-Rope Traction | Traction method can be discussed according to barn layout and project requirement |
Why Choose Our Product
- Clear Product Boundary: This page focuses on automatic manure scraper systems for livestock barns, not tractor scrapers, handheld tools, manure compost turners or slurry separators.
- Closed-Loop Barn Cleaning: The scraper system moves along a designed path and pushes manure toward a collection channel for more organized manure removal.
- Control System Support: Touch-screen control, animation display, automatic memory, alarm record and manual mode switching support daily barn management.
- Multi-Lane Layout Support: One drive unit can be planned for 1–4 scraper blades or scraper lanes according to barn structure.
- Chain Drive Stability: Galvanized chain drive, sprocket engagement, guide wheels and tensioning structure help support stable long-term movement.
- Automatic Cleaning Routine: Timed cleaning, temporary cleaning and adjustable speed help farms manage manure alleys more consistently.
- Project-Based Configuration: Transport length, scraper stroke, scraper lane quantity, drive position and control layout can be matched to the barn plan.
- Installation Planning Support: Provide barn layout, alley length, channel width, power supply condition and manure collection direction so a suitable scraper system plan can be recommended.
Specifications
Configuration Options
| Configuration | Best For | Main Advantage | Buyer Notes |
| One Drive for One Scraper Lane | Single manure alley or simple barn layout | Simple structure and easier planning | Confirm alley length and discharge direction |
| One Drive for Two Scraper Lanes | Small or medium barns | Balanced layout for two alleys | Confirm lane spacing and guide wheel position |
| One Drive for Three Scraper Lanes | Medium livestock barns | Wider barn coverage | Confirm manure channel arrangement |
| One Drive for Four Scraper Lanes | Larger cattle or dairy barns | Multi-lane cleaning with one drive unit | Confirm barn drawings before quotation |
| Chain-Driven Scraper System | Long manure alleys | Stable traction and repeatable movement | Confirm chain specification and alley length |
| Wire-Rope Traction Option | Project-based barn layouts | Alternative traction method | Confirm layout and maintenance access |
| Touch-Screen Control System | Automatic barn cleaning management | Easier monitoring and operation | Confirm control cabinet location |
| Tensioning System | Long-term barn operation | Helps maintain traction stability | Confirm maintenance access space |
| Anti-Freezing Configuration | Cold-climate barns | Supports winter operation conditions | Confirm local temperature and barn structure |
| Automatic Lubrication System | Long-term operation | Reduces manual lubrication workload | Confirm cleaning schedule and chain layout |
Technical Specifications
| Item | Available / Reference Specification |
| Product Type | Automatic manure scraper system / cattle barn manure scraper |
| Main Use | Barn manure alley cleaning and manure collection |
| Automation Level | Fully automatic |
| Operation Mode | Automatic operation and manual mode switching |
| Control System | Touch-screen control cabinet |
| Display Functions | Operation status display, animation display, automatic memory and alarm record support |
| Fault Handling Support | Alarm record and automatic fault analysis support |
| Layout Options | One drive unit can support 1–4 scraper blades or scraper lanes |
| Voltage | 380V |
| Power | 1.5 kW |
| Transport Length | 10–260 m |
| Reference Scraper Stroke | About 140 m |
| Weight Reference | Approximately 860 kg |
| Supporting Equipment | Control cabinet, main machine support and related installation structure |
| Suitable Animals | Cattle, horses, donkeys and mules |
| Traction Method | Chain drive or wire-rope traction can be discussed by project layout |
| Chain Reference | Galvanized chain drive |

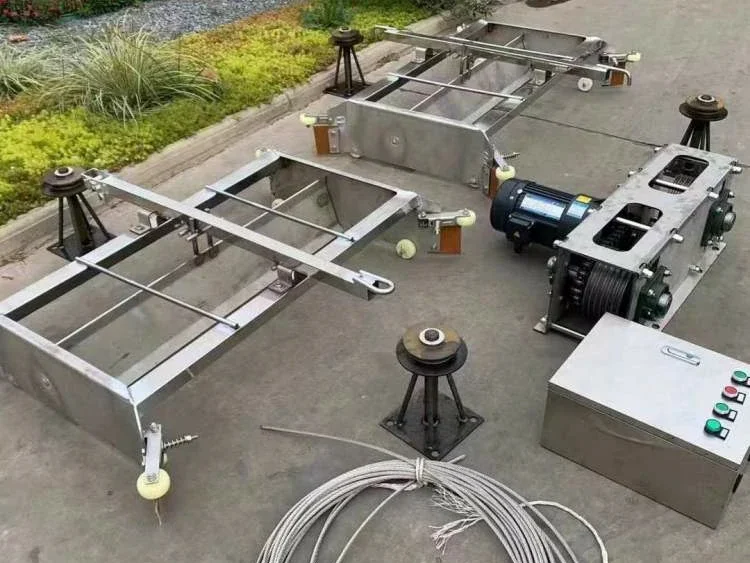

| Main Structure | Drive unit, control cabinet, scraper blade, traction chain, sprocket, guide wheel, tensioning system and manure channel layout |
| Optional Configuration | Emergency stop, anti-freezing device, automatic lubrication and customized barn layout |
| Customization | Scraper lane quantity, scraper blade quantity, transport length, scraper blade structure, control layout and project installation plan |
Project Information to Confirm Before Quotation
| Project Detail | Why It Matters |
| Barn Layout Drawing | Determines scraper lane quantity, drive location, running path and manure discharge direction |
| Manure Alley Length | Determines chain length, scraper stroke and transport length |
| Alley Width and Channel Width | Determines scraper blade width and cleaning coverage |
| Manure Collection Position | Determines scraping direction and discharge point |
| Power Supply Condition | Confirms 380V power, wiring route and control cabinet placement |
| Cable Length Condition | Long cable runs should be planned carefully; single-motor cable length should be controlled according to project electrical requirements |
| Barn Temperature Condition | Helps determine whether anti-freezing configuration is needed |
| Maintenance Access Space | Important for chain adjustment, guide wheel inspection, lubrication and cleaning |
| Cleaning Frequency | Helps determine timed cleaning settings and running speed |
| Animal Type and Barn Use | Helps match scraper structure with cattle, horse, donkey or mule barns |
Customization
Customization Options
| Custom Option | Available Choices | Buyer Notes |
| Scraper Lane Layout | One drive for 1–4 scraper lanes | Confirm barn drawing and alley layout |
| Scraper Blade Quantity | 1–4 scraper blades by project design | Confirm manure alley quantity and running direction |
| Transport Length | 10–260 m reference range | Confirm actual manure alley length |
| Scraper Stroke | About 140 m reference stroke | Confirm required travel distance |
| Scraper Blade Structure | Customized according to alley width and manure condition | Confirm channel width and floor condition |
| Chain and Sprocket Layout | Project-based configuration | Confirm scraper movement path and maintenance access |
| Traction Method | Chain drive or wire-rope traction | Confirm project layout and maintenance preference |
| Control Cabinet | Standard or project-specific control layout | Confirm installation location and power supply |
| Running Speed | Adjustable speed configuration | Confirm manure volume and cleaning frequency |
| Tensioning System | Project-matched tensioning structure | Useful for longer scraper lanes |
| Emergency Stop | Available by project requirement | Recommended for barn safety management |
| Anti-Freezing Device | Optional for cold-climate barns | Confirm winter temperature and barn insulation |
| Automatic Lubrication | Optional maintenance-support configuration | Useful for long-term operation |
| Packaging | Semi-finished bare packaging or project packaging | Confirm shipment method and installation plan |
Applications
Product Comparison
| Feature | Automatic Manure Scraper System | Manual Barn Cleaning | Tractor or Skid-Steer Scraper |
| Main Use | Automatic manure alley cleaning | Manual manure removal | Mechanical manure pushing with vehicle |
| Best For | Dairy barns, cattle barns and fixed manure alleys | Small barns or temporary cleaning | Open yards, wide alleys and vehicle-accessible barns |
| Labor Demand | Lower after installation | High and repetitive | Medium, requires operator |
| Cleaning Consistency | More repeatable through timed operation | Depends on labor availability | Depends on operator and access |
| Control System | Touch-screen control, memory, alarm records | No system control | Vehicle operation only |
| Barn Layout Requirement | Needs manure alley, drive unit, traction path and collection channel | Flexible | Needs vehicle access and turning space |
| Automation Level | Fully automatic with manual mode option | Manual | Equipment-assisted |
| Installation Requirement | Requires planning during construction or renovation | Low | Requires suitable barn access |
| Recommended Buyer | Farms needing scheduled cleaning in fixed barn alleys | Small farms with limited cleaning areas | Farms with wide access lanes and vehicle workflow |
Installation Notes
| Installation Point | Recommendation |
| Civil Construction Reservation | Reserve the middle track position before civil construction to avoid cutting or rebuilding the manure channel later |
| Scraper Blade Position | During embedded installation, the scraper blade should stay within the manure channel and should not protrude outside the channel |
| Drive Unit Foundation | Reserve the foundation position for the main drive unit in advance |
| Stable Drive Base | Ensure the drive unit base is firm and stable before installation |
| Sprocket Alignment | The sprocket and main machine should be installed level to support stable chain movement |
| Motor and Control Cabinet Wiring | Motor and control cabinet wiring should be planned according to the required 380V power supply |
| Maintenance Access | Reserve enough space for inspection, lubrication, cleaning and tension adjustment |
| Grease Filling and Cleaning | Leave access for grease filling and routine cleaning around the drive and chain system |
| Project Drawing Confirmation | Final installation should follow the confirmed barn layout, manure channel design and electrical plan |
Applications
- Dairy Barn Manure Alleys: Suitable for routine manure removal in dairy cow walking alleys and barn channels.
- Beef Cattle Barns: Helps remove manure and bedding residue from fixed cattle barn manure alleys.
- Horse Facilities: Can be configured for horse barn corridors and manure channels where automatic cleaning is needed.
- Donkey and Mule Barns: Suitable for manure removal in donkey and mule housing areas with fixed channels.
- Large-Scale Livestock Farms: Supports scheduled manure removal and repeatable barn cleaning routines.
- Dry Manure Cleaning Alleys: Useful for farms that need to push manure and bedding residue toward a collection point.
- Centralized Manure Collection Systems: Can move manure toward a manure collection channel for later handling.
- Barn Renovation Projects: Suitable for farms upgrading from manual cleaning to automatic manure removal.
- Multi-Lane Barn Layouts: One drive system can be planned for 1–4 scraper lanes depending on barn design.
- Labor-Saving Barn Management: Helps reduce repeated manual cleaning work and improve cleaning consistency.
FAQ
What animals is this automatic manure scraper system suitable for?
This automatic manure scraper system is suitable for cattle, horses, donkeys, mules and similar livestock barns with fixed manure alleys or cleaning channels.
What is the main use of this manure scraper?
It is used to automatically push manure, urine, bedding residue and wastewater from barn alleys toward a manure collection channel or handling area.
What layout options are available?
One drive unit can be configured for 1–4 scraper blades or scraper lanes according to barn layout and manure channel design.
What are the main specifications?
Reference specifications include 380V voltage, 1.5 kW power, 10–260 m transport length, about 140 m reference scraper stroke, approximately 860 kg weight, fully automatic operation and touch-screen control cabinet support.
Can the system run automatically and manually?
Yes. The system can support automatic operation for scheduled cleaning and manual mode for temporary cleaning, inspection or maintenance.
What control functions can be supported?
The control system can support touch-screen operation, animation display, automatic memory, alarm records, fault analysis and emergency stop configuration.
Can this scraper system be customized for my barn layout?
Yes. Scraper lane quantity, scraper blade quantity, transport length, scraper blade structure, chain layout, guide wheel position, control cabinet placement and optional functions can be configured according to the project.
Is this product the same as a tractor manure scraper?
No. This product is a fixed automatic barn manure scraper system driven by a main unit and chain or traction structure. A tractor manure scraper is a different type of vehicle-mounted or attachment-based cleaning tool.
What information should I provide before quotation?
Please provide animal type, barn layout drawing, manure alley length, alley width, channel width, power supply condition, cleaning frequency, scraper lane quantity, scraper blade quantity and destination market.
Manufacturer
About Us
- Experience: 10 years of livestock equipment manufacturing since 2016, with a 5,000m² production facility and 8 production lines.
- Quality Standards: 304 food-grade stainless steel on all water-contact surfaces. 240-hour salt spray testing on galvanized components.
- Customization: Custom-length fabrication is our standard — tell us your pen dimensions and we build accordingly.
- Support: CAD layout drawings, assembly manuals, pre-shipment photos and videos for your approval. Remote video guidance and spare parts support included.
Solid-Liquid Separators
Inclined Screen Manure Separator for Livestock Wastewater
02 — Reading
Buying and use guides
Request a quote for this product
Send dimensions, quantity, photos or drawings. We reply within 24 hours on working days with a quotation or questions.
