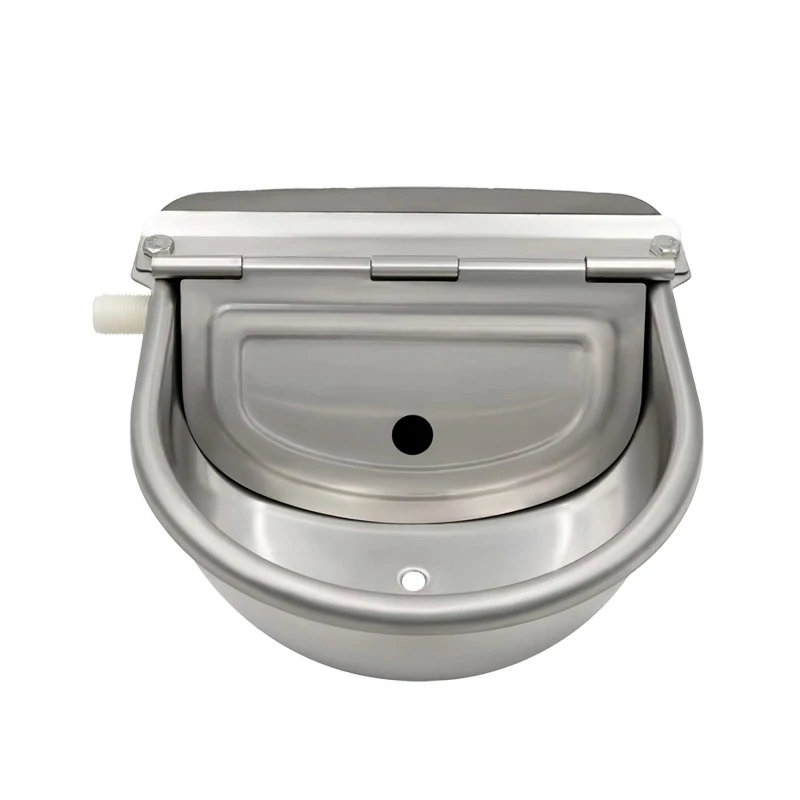

Automatic Livestock Waterer Bowl with Float Valve
OEM / ODM custom manufacturing
- Material
- 304 stainless steel
- Standard Size
- 25 × 25 × 10 cm
- Thickness Reference
- 0.8 mm option
- Cover Options
- 25 × 27 × 10 cm fixed cover / 25 × 27 × 10 cm flip cover
- Bottom Diameter
- 25 cm
- Hole Quantity
- 1 hole
Request a quote
Send dimensions, quantity, photos or drawings. We build to your specification.
Product description
This automatic livestock waterer is a compact stainless steel drinking bowl designed for cattle, horses, sheep, goats, calves, donkeys and small farm drinking points. With a float valve water control system, the bowl refills automatically after animals drink and stops when the water level reaches the set position. Fixed cover, flip cover, drain outlet, filter and hose options are available for different barn and pen layouts.
Product Overview
This automatic livestock waterer bowl is a compact float valve drinking device for barns, pens, stables and small livestock areas. The bowl body is made from 304 stainless steel for better corrosion resistance and easier cleaning in humid farm environments.
The float valve controls the water level automatically. When animals drink and the water level drops, the inlet refills the bowl. When the water level reaches the set position, the float valve stops the water flow. This helps reduce manual water filling and unnecessary water waste.
Unlike a large water trough, this product is designed for single-point or small-group drinking. It is suitable for wall, railing, post and pen installation in cattle sheds, horse stalls, sheep pens, goat pens, calf areas, donkey areas and small farms.
Product Features
- 304 Stainless Steel Bowl: The bowl body is made from 304 stainless steel, suitable for daily drinking use in barns, stalls and pens.
- Float Valve Water Control: The float valve controls water level automatically, helping the bowl refill after animals drink.
- Automatic Refill and Stop: Water enters when the level drops and stops when the float reaches the set height.
- Compact Bowl Design: The 25×25×10 cm reference size is suitable for single-point drinking, small pens and separated animal areas.
- Fixed Cover or Flip Cover: Fixed cover design provides a stable structure, while flip cover design makes it easier to check the float valve and clean the inside.
- Drain Outlet Option: The bowl can be supplied with or without a drain outlet. The drain outlet helps remove sediment, feed residue and dirty water.
- Built-In Filter: The inlet filter helps reduce debris entering the valve and lowers the risk of blockage.
- Backup Water Inlet Hole: The backup inlet hole allows more flexibility for different pipe directions and installation positions.
- Smooth Rounded Edge: The bowl edge is smooth to help reduce mouth contact risks during drinking.
- Hose Options: 80 cm and 100 cm hose options can be supplied for flexible connection to the water source.
Why Choose Our Product
- Clear Product Boundary: This page focuses on a compact automatic livestock waterer bowl, not large water troughs or heated drinking systems.
- 304 Stainless Steel Body: The bowl is suitable for humid barn environments and routine water cleaning.
- Float Valve Refill: Automatic refill and stop control help reduce manual water filling.
- Drain and Cover Options: Fixed cover, flip cover, drain outlet and non-drain versions can match different farm maintenance needs.
- Filter and Inlet Design: Built-in filter and backup inlet hole improve installation flexibility and daily usability.
- Suitable for Multiple Animals: The bowl can be used for cattle, horses, sheep, goats, calves, donkeys and mixed livestock areas.
- Small Farm Friendly: Compact size supports single-point drinking, separated pens and small-group layouts.
- Bulk Supply Support: Cover type, hose length, packaging and batch configuration can be discussed before order.
Specifications
Configuration Options
| Configuration | Best For | Main Advantage | Buyer Notes |
| 25×25×10 cm Standard Bowl | Cattle, horses, sheep, goats, calves and donkeys | Compact and simple installation | Confirm mounting position and animal size |
| 25×27×10 cm Fixed Cover Bowl | Stronger animal contact areas | More stable cover structure | Suitable for cattle and horses |
| 25×27×10 cm Flip Cover Bowl | Easier maintenance | Easier valve inspection and cleaning | Suitable for farms that clean frequently |
| With Drain Outlet | Water with sediment or frequent cleaning needs | Easier to discharge dirty water | Recommended where feed residue enters the bowl |
| Without Drain Outlet | Simple drinking points | Lower structure complexity | Suitable for cleaner water environments |
| 80 cm Hose Option | Short-distance water connection | Flexible and compact | Confirm pipe direction before order |
| 100 cm Hose Option | Longer connection distance | More installation flexibility | Useful for railing or post installation |
| Bulk Installation Set | Multiple pens or barns | Repeatable drinking points | Confirm quantity, packaging and installation plan |

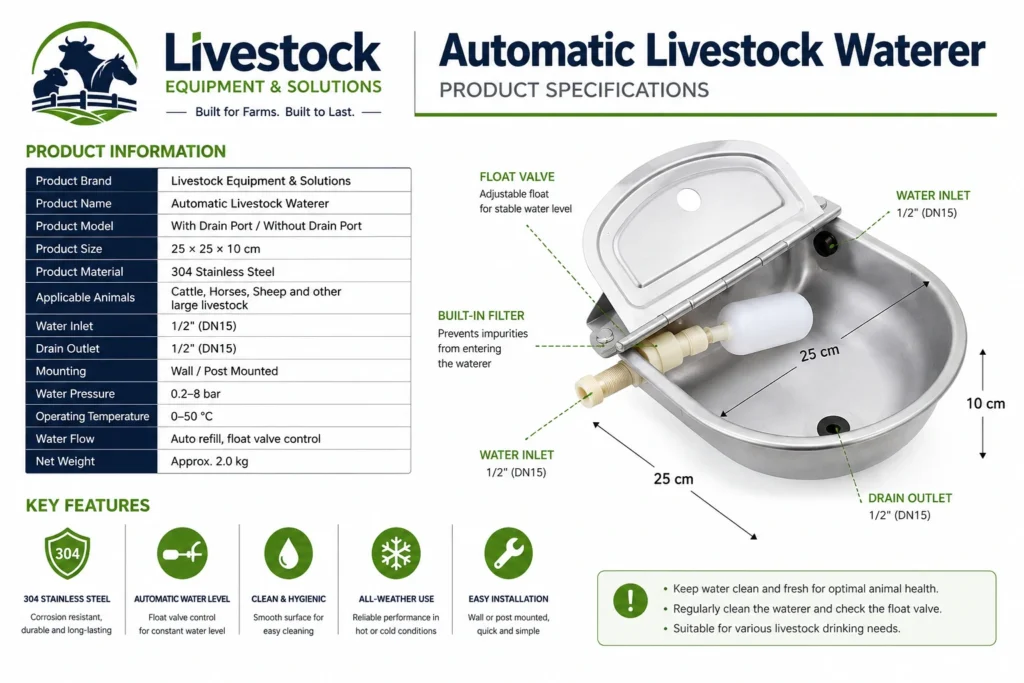

Technical Specifications
| Item | Available / Reference Specification |
| Product Type | Automatic livestock waterer bowl / float valve water bowl |
| Material | 304 stainless steel |
| Standard Size | 25 × 25 × 10 cm |
| Cover Options | 25 × 27 × 10 cm fixed cover / 25 × 27 × 10 cm flip cover |
| Thickness Reference | 0.8 mm option |
| Bottom Diameter | 25 cm |
| Hole Quantity | 1 hole |
| Water Control | Float valve water control |
| Float Adjustment | Float height adjustment knob |
| Inlet Structure | Water inlet and backup water inlet hole |
| Filter | Built-in inlet filter |
| Drain Option | With drain outlet / without drain outlet |
| Hose Options | 80 cm / 100 cm hose |
| Installation Method | Wall, railing, post, pen or stable installation |
| Suitable Animals | Cattle, horses, sheep, goats, calves, donkeys and similar livestock |
| Use Scenario | Barn drinking point, stall drinking point, calf pen, sheep pen, goat pen, small farm, separated animal area |
Available Product Options
| Option | Size / Specification | Bottom Diameter | Hole Quantity | Standard Hose |
| Fixed Cover Bowl | 25 × 27 × 10 cm | 25 cm | 1 | Without fixed hose length |
| Flip Cover Bowl | 25 × 27 × 10 cm | 25 cm | 1 | Without fixed hose length |
| Standard 0.8 mm Bowl | 25 × 25 × 10 cm | 25 cm | 1 | Without fixed hose length |
| Optional Hose | 80 cm | – | – | Optional accessory |
| Optional Hose | 100 cm | – | – | Optional accessory |
Note: Final cover type, drain outlet, hose length, inlet direction, packaging and bulk order quantity should be confirmed before quotation.
Customization
Customization Options
| Custom Option | Available Choices | Buyer Notes |
| Cover Type | Fixed cover or flip cover | Choose according to animal strength and maintenance needs |
| Drain Outlet | With drain outlet or without drain outlet | Choose based on water quality and cleaning frequency |
| Bowl Size | 25×25×10 cm or 25×27×10 cm reference options | Confirm available batch before order |
| Thickness | 0.8 mm reference option | Confirm if higher thickness is required |
| Hose Length | 80 cm or 100 cm | Confirm water source distance |
| Inlet Direction | Standard inlet or backup inlet hole | Confirm pipe direction and installation position |
| Installation Method | Wall, railing, post or pen mounting | Confirm animal height and structure strength |
| Packaging | Standard export packaging or custom packaging | Suitable for distributors and farm projects |
| Bulk Order | Multiple bowls for barn or pen layout | Confirm quantity, spare parts and packing plan |
Applications
Product Comparison
| Feature | Automatic Livestock Waterer Bowl | Large Water Trough | Heated Livestock Water Trough |
| Main Use | Single-point or small-group automatic drinking | Large-group drinking or water storage | Winter drinking and anti-freezing water supply |
| Water Control | Float valve automatic refill | Usually manual or float valve depending on design | Automatic refill plus heating control |
| Product Size | Compact bowl | Larger trough or tank | Large insulated trough |
| Best For | Pens, stalls, railings, calf areas and small farms | Open drinking areas and larger groups | Cold-climate barns and outdoor winter use |
| Heating Function | No | Usually no | Yes |
| Installation | Wall, railing, post or pen structure | Ground or fixed frame placement | Fixed installation with power supply |
| Maintenance Focus | Filter, float valve, drain outlet and bowl cleaning | Water volume, algae, sediment and placement | Heating system, insulation, electricity and water level |
| Page Boundary | This product page | Separate trough or tank page | Heated water trough category/page |
Applications
- Cattle Shed Drinking: Suitable for cattle pens and separated barn drinking points.
- Horse Stable Drinking: Can be installed in horse stalls or stable walls for automatic water access.
- Sheep Pen Drinking: Suitable for sheep pens and small ruminant drinking areas.
- Goat Pen Drinking: Can be used as a goat waterer for small farms and separated pens.
- Calf Area Drinking: Suitable for calf pens where compact and controlled drinking access is needed.
- Donkey Area Drinking: Can support donkey and mixed livestock drinking points.
- Small Farm Watering: Useful for family farms and small livestock facilities that need simple automatic refill.
- Fence or Railing Installation: Can be installed on railings, posts or barn structures according to site layout.
- Single-Point Drinking: Suitable for one drinking position or small-group drinking management.
- Multi-Point Layouts: Multiple bowls can be arranged across different pens or animal groups.
FAQ
What animals can use this automatic livestock waterer bowl?
This automatic livestock waterer bowl can be used for cattle, horses, sheep, goats, calves, donkeys and similar livestock.
What material is the waterer bowl made from?
The bowl body is made from 304 stainless steel, which is suitable for humid barn environments and daily drinking use.
How does the float valve water control work?
When animals drink and the water level drops, the float valve opens and refills the bowl. When the water reaches the set level, the float valve closes and stops the water flow.
What sizes are available?
Reference options include a 25×25×10 cm standard bowl and 25×27×10 cm fixed cover or flip cover versions.
Can I choose a fixed cover or flip cover?
Yes. A fixed cover provides a more stable structure, while a flip cover makes it easier to inspect the float valve and clean the bowl.
Is a drain outlet available?
Yes. The bowl can be supplied with or without a drain outlet. A drain outlet is useful when sediment, feed residue or dirty water needs to be cleaned more easily.
Can this product be used as a heated waterer?
No. This product is a compact float valve drinking bowl without heating. For cold-climate anti-freezing use, a heated livestock water trough or winter watering solution should be selected separately.
What information should I provide before quotation?
Please provide animal type, quantity, installation position, cover type, drain requirement, hose length, inlet direction, packaging needs and destination market.
