Take control of your herd’s reproductive performance with a portable cattle ultrasound machine built for field work. Weighing just 0.8 kg and delivering 6+ hours of continuous scanning, this unit detects pregnancy as early as 28 days in cattle, 25 days in sheep, and 18 days in swine. The IPX7 waterproof probe withstands rain, mud, and rigorous disinfection, while 256-frame video playback lets you review scans without repeating the exam. Built-in backfat measurement supports body condition scoring for improved feed efficiency across dairy, beef, and small ruminant operations.
Why Choose This Cattle Ultrasound Machine
Short Benefits
- Early pregnancy detection at 28 days (cattle) and 25 days (sheep) to shorten calving intervals
- Lightweight 0.8 kg design with shoulder strap for all-day field scanning
- IPX7 waterproof probe — fully submersible for easy disinfection between animals
- 256-frame cine loop playback — review every frame post-exam to avoid missed diagnoses
- Built-in backfat measurement for objective body condition scoring
Suitable For
Dairy cattle, beef cattle, sheep, goats, swine, horses, donkeys, llamas, alpacas, and camels.
Get a Tailored Livestock Equipment Solution
Tell us your farm size, layout, and requirements — we’ll recommend the most efficient setup for your operation.
What Is a Cattle Ultrasound Machine?
A cattle ultrasound machine is a portable diagnostic tool that uses high-frequency sound waves to create real-time images of internal reproductive organs. Unlike cart-based systems confined to a clinic, this handheld unit is designed for on-farm use — moving freely through pens, pastures, and handling chutes. It enables veterinarians and herd managers to perform early pregnancy diagnosis, detect uterine infections and ovarian abnormalities, and measure subcutaneous fat thickness for objective body condition scoring. With its long-life lithium battery, IPX7 waterproofing, and intuitive controls, this device helps modern cattle, sheep, and equine operations improve reproductive efficiency and make faster, data-driven breeding decisions.
How It Works
Review & Record: The 256-frame cine loop stores the full scan sequence, allowing frame-by-frame review to catch subtle details. Custom probe presets optimize image quality for cattle, sheep, horses, and swine.
Positioning & Preparation: The animal is gently restrained in a chute or stanchion. Ultrasound gel is applied to the probe head and the animal’s skin to ensure good acoustic contact.

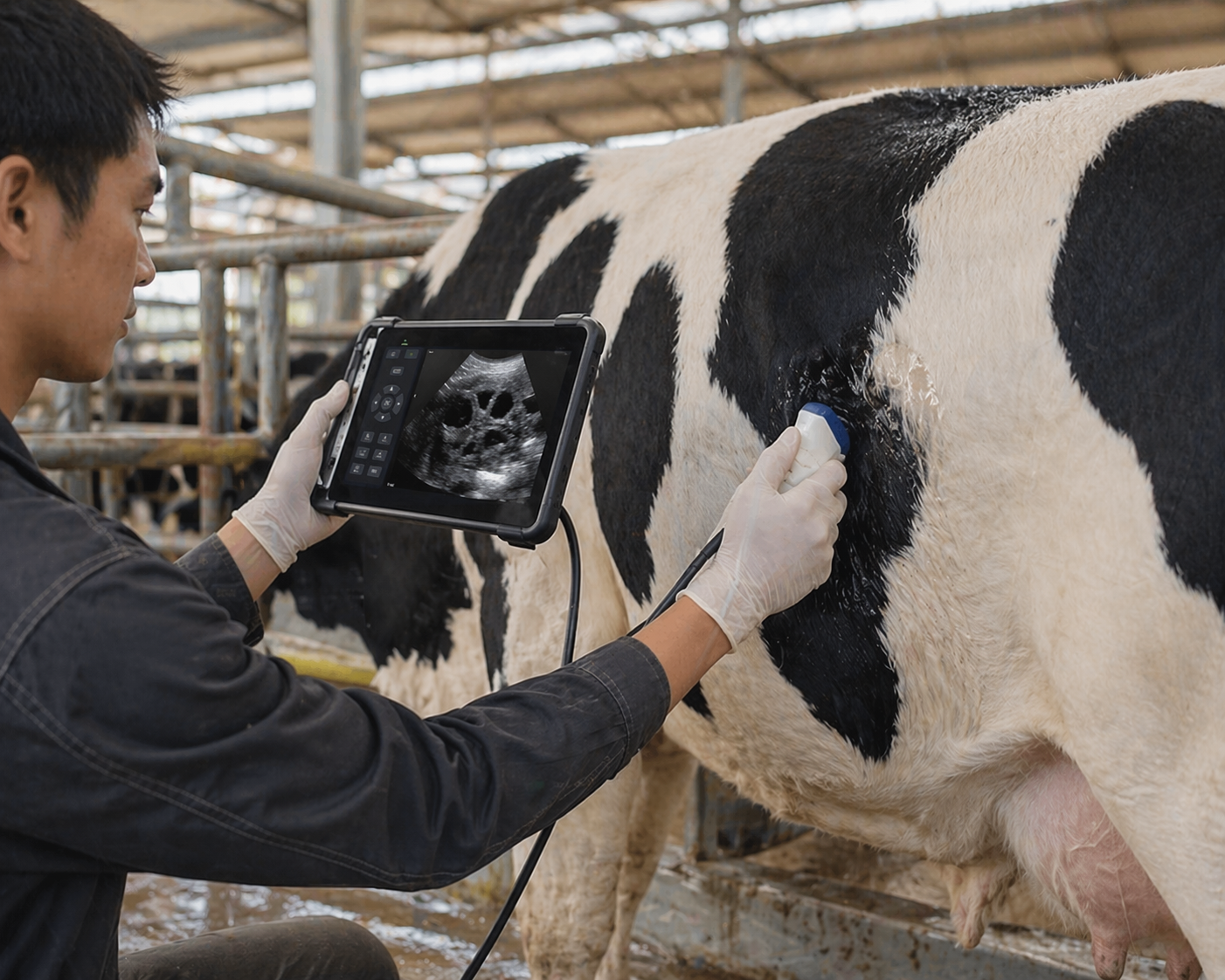

Probe Placement: The probe is placed externally on the animal’s flank or rectal wall, depending on the species and stage of pregnancy. No invasive procedures required.
Image Acquisition: The 3.5 MHz probe emits sound waves that penetrate tissue and reflect back, creating a 256-level grayscale image on the 5.6-inch LCD display.
Real-Time Interpretation: The operator visualizes gestational sacs, fetal structures, or uterine health in real time. The device supports direct measurement of distance, circumference, area, gestational age, and backfat.
Application Scenarios
- Dairy & Beef Cattle Operations: Confirm pregnancy from 28 days post-breeding, identify open cows early, and shorten calving intervals for improved reproductive performance.
- Sheep & Goat Farms: Detect pregnancy at 25 days, assess fetal numbers, and measure backfat for nutritional management of ewes and does.
- Swine Production: Perform pregnancy checks from 18 days, improving farrowing rate predictions and sow management.
- Equine Reproduction: Monitor follicular activity, confirm pregnancy from 14–18 days, and evaluate uterine health in broodmares.
- Multi-Species Veterinary Practices: One unit with customizable probe presets covers cattle, sheep, goats, pigs, horses, llamas, alpacas, and camels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Weight | 0.8 kg |
| Display | 5.6-inch High-Resolution LCD, 256 Grayscale |
| Probe Type | 3.5 MHz Mechanical Sector Probe |
| Probe Waterproof Rating | IPX7 (Fully Submersible) |
| Max Detection Depth | ≥ 160 mm |
| Battery Life | ≥ 6 Hours Continuous Use |
| Measurement Functions | Distance, Circumference, Area, Gestational Age, Backfat |
| Video Function | 256-Frame Cine Loop Playback |
| Power Adapter | 220V / 380V Compatible |
| Custom Probe Options | 5.0 MHz Micro-Convex (Small Ruminants), Custom Frequency Tuning |
Why Choose Our Ultrasound Scanner?
- Truly Portable & Farm-Ready: At just 0.8 kg and with a 6-hour battery, you can scan all day without cords or carts — ideal for large ranches, mobile vets, and remote grazing areas.
- Built for Harsh Environments: The IPX7 waterproof probe handles mud, rain, and rigorous disinfection between animals. No delicate clinic-only equipment here.
- Faster Breeding Decisions: Detect pregnancy as early as 28 days in cattle and 25 days in sheep, allowing you to rebreed open females immediately and reduce costly dry periods.
- Multi-Species Flexibility: Custom probe presets optimize image quality whether you’re scanning a 600 kg cow, a 60 kg ewe, or a 400 kg mare.
Portable Ultrasound vs Manual Rectal Palpation
| Feature | Manual Rectal Palpation | This Cattle Ultrasound Machine |
|---|---|---|
| Earliest Pregnancy Detection (Cattle) | 35–45 days (operator-dependent) | 28 days (visual confirmation) |
| Fetal Viability Assessment | Not possible | Yes — heartbeat visible from 30 days |
| Uterine Health Evaluation | Limited | Yes — detects infections, cysts, fluid |
| Operator Training Required | High — months of practice | Low — clear 256-grayscale imaging with playback |
| Animal Stress | Invasive | Non-invasive, external scanning |
| Data Recording | Manual notes only | 256-frame video playback and on-screen measurement |
| Backfat / Body Condition | Not available | Built-in backfat measurement |
Frequently Asked Questions
How early can pregnancy be detected in cattle with this scanner?
With the standard 3.5 MHz probe, pregnancy can be reliably detected as early as 28 days post-insemination in cattle. Accuracy increases significantly after 35 days. For sheep, detection is possible from 25 days; for swine, from 18 days. The 256-frame cine loop playback helps confirm findings without repeating the exam.
Is the scanner suitable for use in wet or muddy conditions?
Yes. The probe is IPX7-rated — fully submersible and cleanable with disinfectant solutions between animals. The sealed scanner body resists moisture and dust, making it suitable for typical barn and field environments.
How long does the battery last on a full charge?
The built-in lithium battery supports 6+ hours of continuous scanning — sufficient for a full day of field work. The unit can also be operated while plugged into AC power if needed.
Can this scanner be used on sheep and goats as well?
Absolutely. The scanner is suitable for cattle, sheep, goats, swine, horses, donkeys, llamas, alpacas, and camels. For small ruminants, we can customize the probe frequency for optimized near-field imaging.
Do I need special training to use it?
The 256-frame cine loop playback is particularly helpful for new users, allowing you to review scans slowly and consult remotely if needed. Many veterinarians and AI technicians become proficient after scanning 10–20 known-pregnant animals.
How does the built-in backfat measurement help my operation?
The backfat measurement function provides objective data for body condition scoring. This helps optimize feeding strategies for transition dairy cows, determine market readiness for finishing beef cattle, and adjust rations for breeding ewes and sows.
