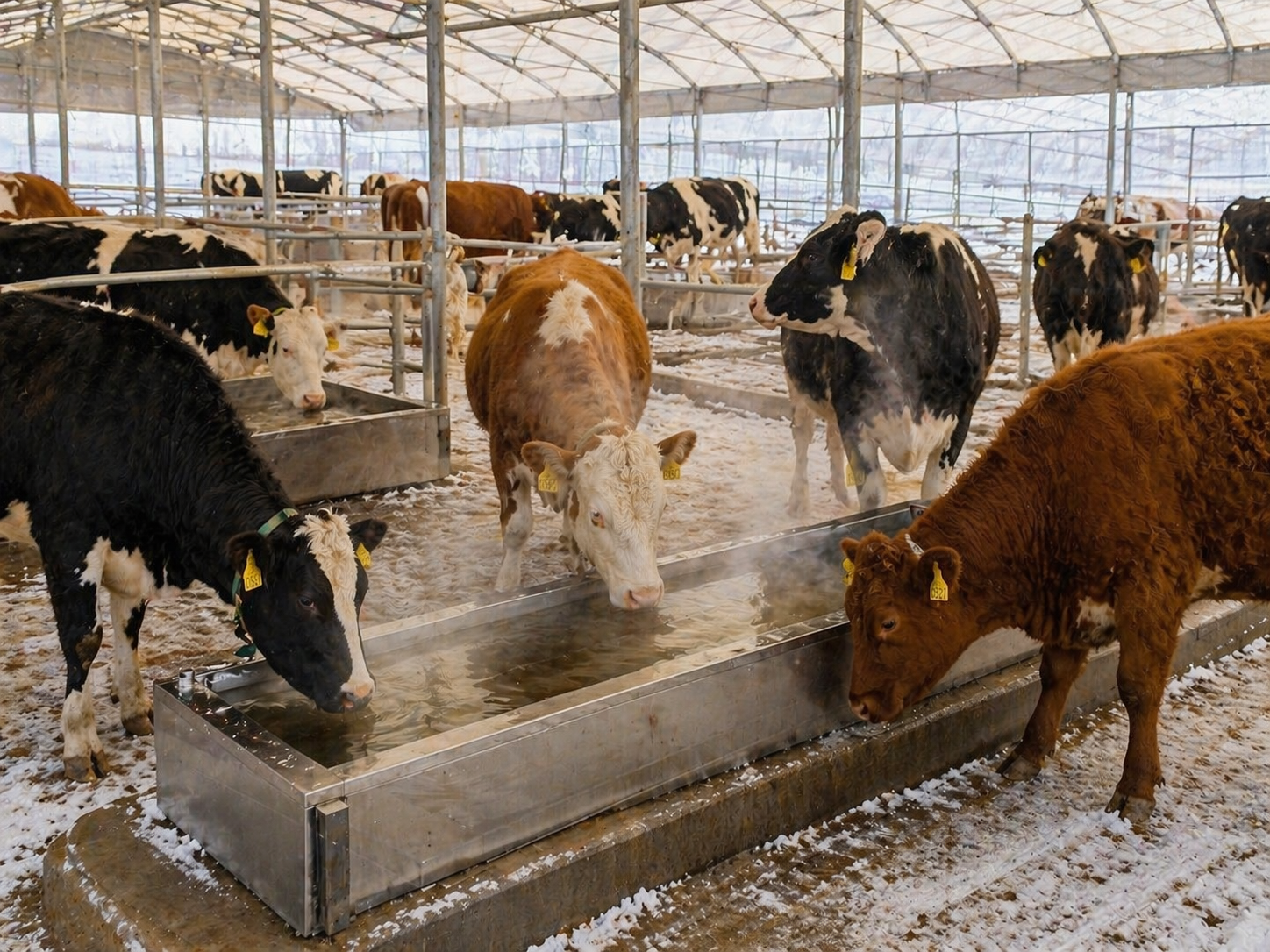

Engineered for sub-zero durability, this heated water trough for cattle ensures ice-free hydration all winter. Constructed from food-grade 304 stainless steel with dense polyurethane insulation, it operates reliably at -30°C. An integrated float valve automatically maintains water level, eliminating daily manual filling. Choose any custom length from 2m to 6m to fit your barn layout perfectly. Boost dairy milk yield by 5–8% and accelerate beef weight gain by up to 10% with constant access to warm water.
Why Choose This Heated Cattle Water Trough
Short Benefits
- Prevents freezing down to -30°C with 4–5cm polyurethane insulation
- 100% 304 stainless steel (food-grade) for 10+ year service life
- Automatic float valve refill — no manual filling required
- Leakage protection device for operator and animal safety
- Fully customizable length: 2m to 6m, tailored to your pen
Suitable For
Dairy cattle, beef cattle, horses, sheep, goats, and other large livestock.
Get a Tailored Livestock Equipment Solution
Tell us your farm size, layout, and requirements — we’ll recommend the most efficient setup for your operation.

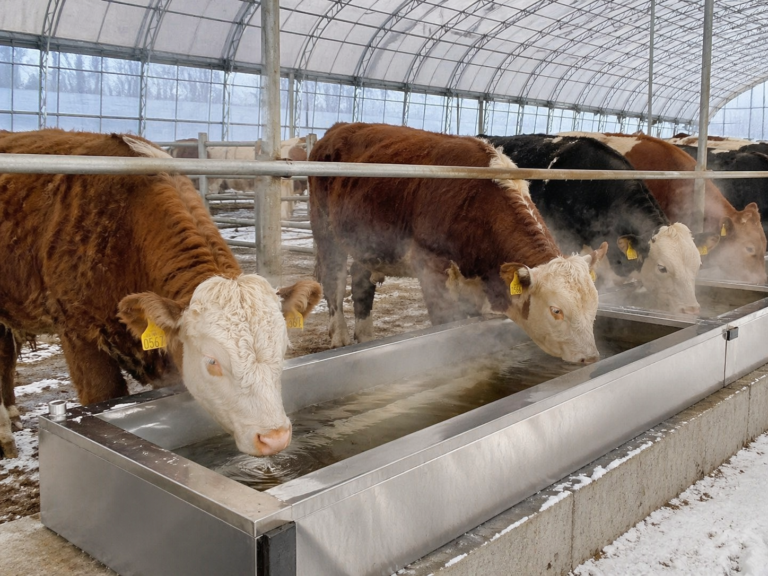

What Is a Heated Water Trough for Cattle?
A heated water trough for cattle is a winter-proof livestock drinker designed to prevent ice formation in cold climates. Unlike standard galvanized stock tanks, this model combines a durable 304 stainless steel body — with both inner and outer layers — encapsulating 5cm of high-density polyurethane insulation. An embedded heating element, available in 800W or 1600W configurations, transfers gentle warmth through the steel wall without ever contacting water directly. A separate intelligent temperature control box with a digital display allows precise adjustment, while a built-in transformer converts 220V to 36V safe voltage for livestock. An automatic float valve connects to your existing water supply, ensuring the trough refills as animals drink — saving labor and reducing cold stress. This precision watering solution is ideal for dairy operations, beef feedlots, horse stables, and sheep sheds facing harsh winters.
How It Works？
- Water Supply Connection: The trough connects to your standard water line via the float valve inlet.
- Automatic Refill: As animals drink, the water level drops; the float valve opens to refill precisely to the set level.
- Insulation & Heating: 5cm of polyurethane foam between two 304 stainless steel layers encapsulates the tank. When the thermostat detects temperatures near freezing, the embedded heating element activates, transferring warmth through the inner steel wall. The control box displays real-time temperature.
- Safe Drinking: Animals access temperate water at all times. The heating element never contacts water directly. A 220V-to-36V transformer and a DZ47-63 earth leakage circuit breaker ensure complete electrical safety.
- Maintenance & Drainage: The trough includes a large-diameter drain plug for periodic cleaning and sediment flush.

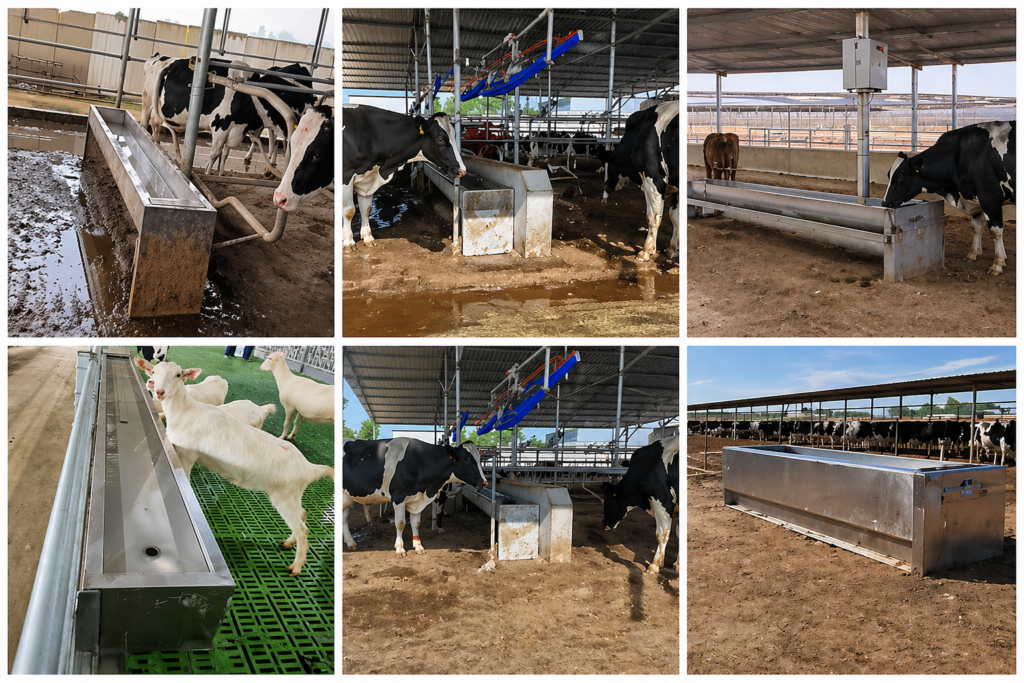

Application Scenarios

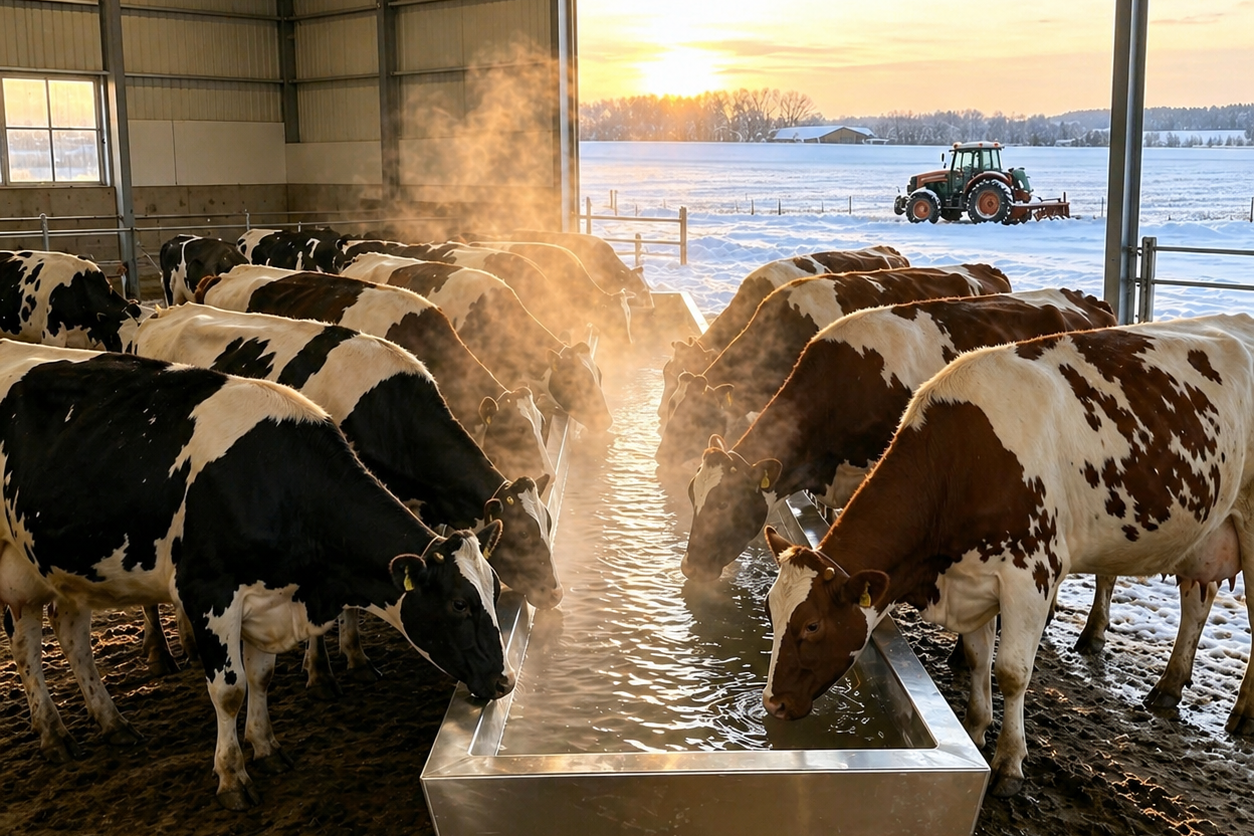

- Dairy Barns: Ensure lactating cows drink enough warm water in winter to support milk production.
- Beef Feedlots: Accelerate finishing by preventing cold-induced feed intake reduction.
- Horse Stables: Reduce colic risk and dehydration in performance horses during cold snaps.
- Sheep & Goat Sheds: Shallow-depth models available for small ruminants (20cm deep).

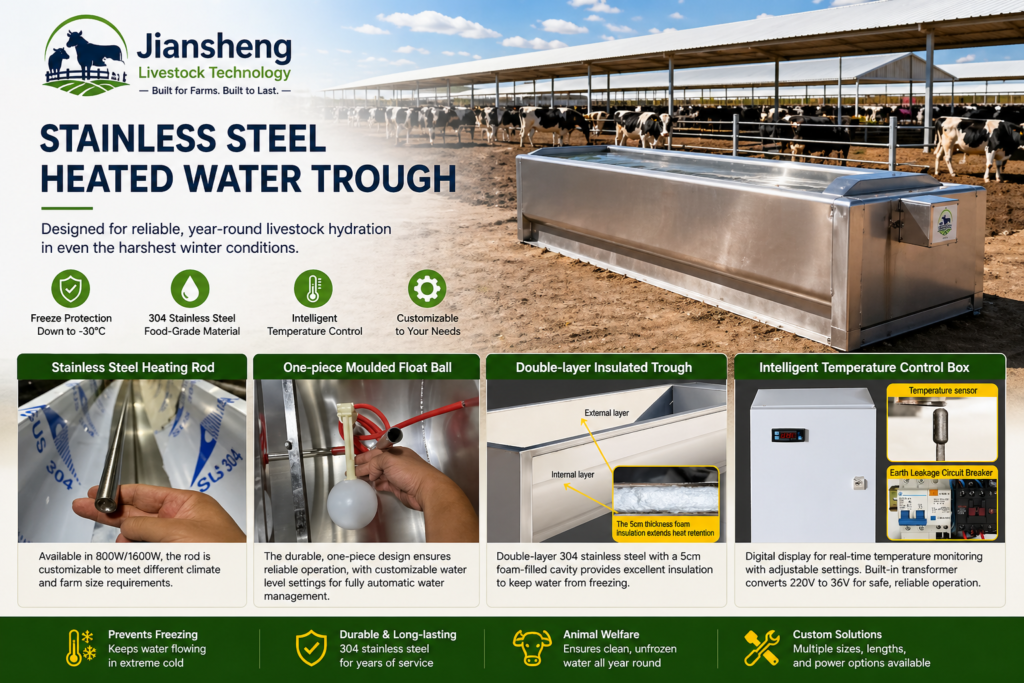

Technical Specifications
| Component | Parameter | Specification |
|---|---|---|
| Trough Body | Material | 304 Food-Grade Stainless Steel (Inner + Outer Layers) |
| Insulation | 5cm High-Density Polyurethane Foam | |
| Custom Length | 2m to 6m | |
| Heating Rod | Power Options | 800W / 1600W |
| Control | Thermostat-Controlled, Digital Display | |
| Temperature Control Box | Display | Real-Time Digital Temperature Readout |
| Safety Voltage | 220V → 36V Transformer | |
| Circuit Breaker | DZ47-63 Earth Leakage Protection | |
| Float Valve | Type | One-Piece Moulded Float Ball |
| Function | Automatic Water Level Maintenance | |
| Drainage | Drain Plug | Large-Diameter for Sediment Flush |
| Safety | Leakage Protection | Integrated Professional Leakage Protector |
Heated vs Standard Livestock Water Trough
| Feature | Standard Galvanized Trough | This Heated Stainless Steel Trough |
|---|---|---|
| Freeze Protection | Freezes in sub-zero; manual ice breaking required | Maintains liquid water at -30°C automatically |
| Material | Single-layer galvanized steel | Double-layer 304 stainless steel |
| Insulation | None or thin layer | 5cm high-density polyurethane foam |
| Safety Voltage | Standard mains | 36V safe voltage via built-in transformer |
| Water Refill | Manual or basic float valve | Premium one-piece moulded float valve, automatic |
| Energy Efficiency | — | Thermostat-controlled, only activates when needed |
| Labor Requirement | High | Low — fully automatic |
Why Choose Our Heated Trough?
- Boosts Productivity: Research shows warm water in winter can increase milk production by 5–8% and accelerate beef weight gain by up to 10%.
- Superior Insulation: 4–5cm closed-cell polyurethane foam cuts energy costs; keeps water liquid even at -30°C.
- Built to Last: 304 stainless steel resists corrosion and impacts; smooth welds prevent injury and biofilm buildup.
- Labor Savings: Float valve auto-fills; no daily ice breaking or bucket carrying.
- Custom Fit: Fabricated to your exact length — no dead space or gaps in the pen line.
FAQ
What is the lowest temperature this trough can handle?
With the 5cm polyurethane insulation between double-layer 304 stainless steel walls and the integrated heating element (800W/1600W options), the trough keeps water liquid at ambient temperatures down to -30°C (-22°F).
Does the heating element touch the water directly?
No. The heating element is embedded between the double-layer stainless steel walls, heating the inner body indirectly. A built-in transformer converts 220V to 36V safe voltage, and the DZ47-63 earth leakage circuit breaker provides additional protection. This design eliminates electrical shock risk and extends element life.
Can I order a custom length not listed in your specifications?
Absolutely. Custom-length fabrication is our standard. We manufacture troughs to any length from 2m to 6m. Provide your required length and livestock type for a quote — no extra charge for customization.
How much electricity does it consume?
Energy consumption varies by ambient temperature. The thermostat cycles the heater only as needed. In -15°C, a 3-meter cattle trough with the 800W heating rod averages 200–400W. The 5cm polyurethane insulation significantly reduces heat loss, keeping energy costs low.
Is the material safe for animals?
Yes. Both the inner and outer layers are 304 food-grade stainless steel — non-porous, easy to clean, corrosion-resistant, and safe for continuous contact with drinking water. No plastic or painted surfaces are in contact with the water.
How do I clean and maintain the trough?
The trough includes a large-diameter drain plug at the bottom. Turn off the water supply, open the plug, and flush out any accumulated sediment. The smooth stainless steel interior allows for quick scrubbing with standard barn cleaning equipment.
Worried About High Shipping Costs?
Instantly estimate your freight rate with our logistics calculator. Get a transparent quote based on your crate size, weight, and destination in just a few clicks. [Freight Quote China Shipping Cost Inquiry Tool →]
Related Livestock Equipment
- For a complete winter dairy setup: Pair this heated cattle water trough with a custom parallel milking parlor — proper hydration supports milk synthesis and recovery after every milking shift. View Custom Milking Parlor Options →
- For remote herd monitoring: A GPS livestock ear tag system tracks animal location and health alongside consistent water intake, giving you a complete picture of herd well-being from your phone. See GPS Ear Tag Tracking →
- For reproductive management: Use a portable cattle ultrasound scanner to perform pregnancy checks at the bunk while cows are secured during watering. Browse Portable Ultrasound Scanners →
- For feed efficiency optimization: An automatic FCR monitoring system measures how efficiently each animal converts water and feed into body weight — closing the productivity loop. Explore FCR Monitoring Systems →

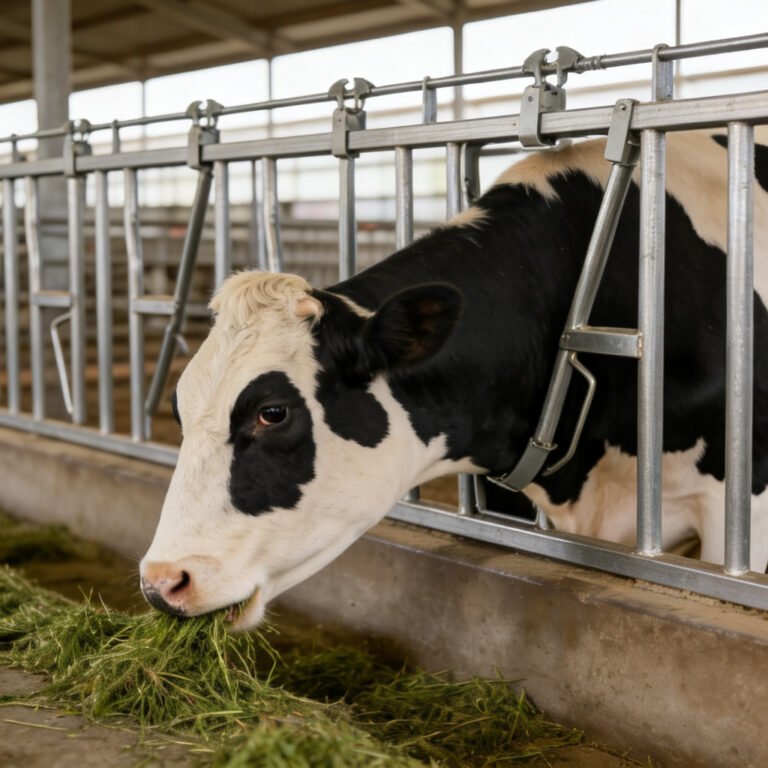

- For handling during watering: Install self-locking cattle headlocks along the same feed line to secure cows for vaccinations or health checks without moving them to a separate facility. View Custom Headlock Options →
