Livestock roll up doors are designed for barns, dairy buildings, feed areas, livestock passages, machinery entrances and farm workshops that need fast access, weather protection and safer daily operation. This fast stacking door combines a coated PVC curtain, galvanized or stainless steel frame, wind-resistant bars, intelligent control box, safety sensors and optional servo motor system. It can be customized for different farm building openings, control methods and traffic requirements.
Why Choose These Livestock Roll Up Doors
- Fast opening and closing: Opening speed can reach 0.8–2 m/s, with 0.6 m/s closing speed, helping reduce waiting time at busy farm entrances.
- PVC coated curtain: High-strength polyester base fabric with coated surface supports waterproof, dustproof, self-cleaning and daily farm use.
- Wind-resistant structure: Guide rails and vertical wind-resistant bars improve door stability for large agricultural openings.
- 220V / 380V control: Motor and electrical control systems can be matched to local power standards.
- Optional servo motor system: Servo motor and intelligent control box are available for smoother and more stable operation.
- Multiple safety systems: Safety photocell, infrared protection and optional bottom safety airbag help reduce collision and pinch risks.
- Emergency opening support: When power fails, the motor brake and balance system can help lift the door manually.
- Multiple activation methods: Radar sensor, loop sensor, pull rope switch, face recognition, remote control and push button options are available.
- Custom colors and sizes: Curtain colors include red, yellow, blue, green, white, gray and full transparent options.
Suitable For
Dairy barns, cattle sheds, pig houses, poultry houses, feed storage buildings, farm workshops, machinery entrances, livestock passages, cold rooms, processing areas and agricultural logistics entrances.
Get a Tailored Livestock Equipment Solution
Tell us your farm size, layout, and requirements — we’ll recommend the most efficient setup for your operation.
Product Overview

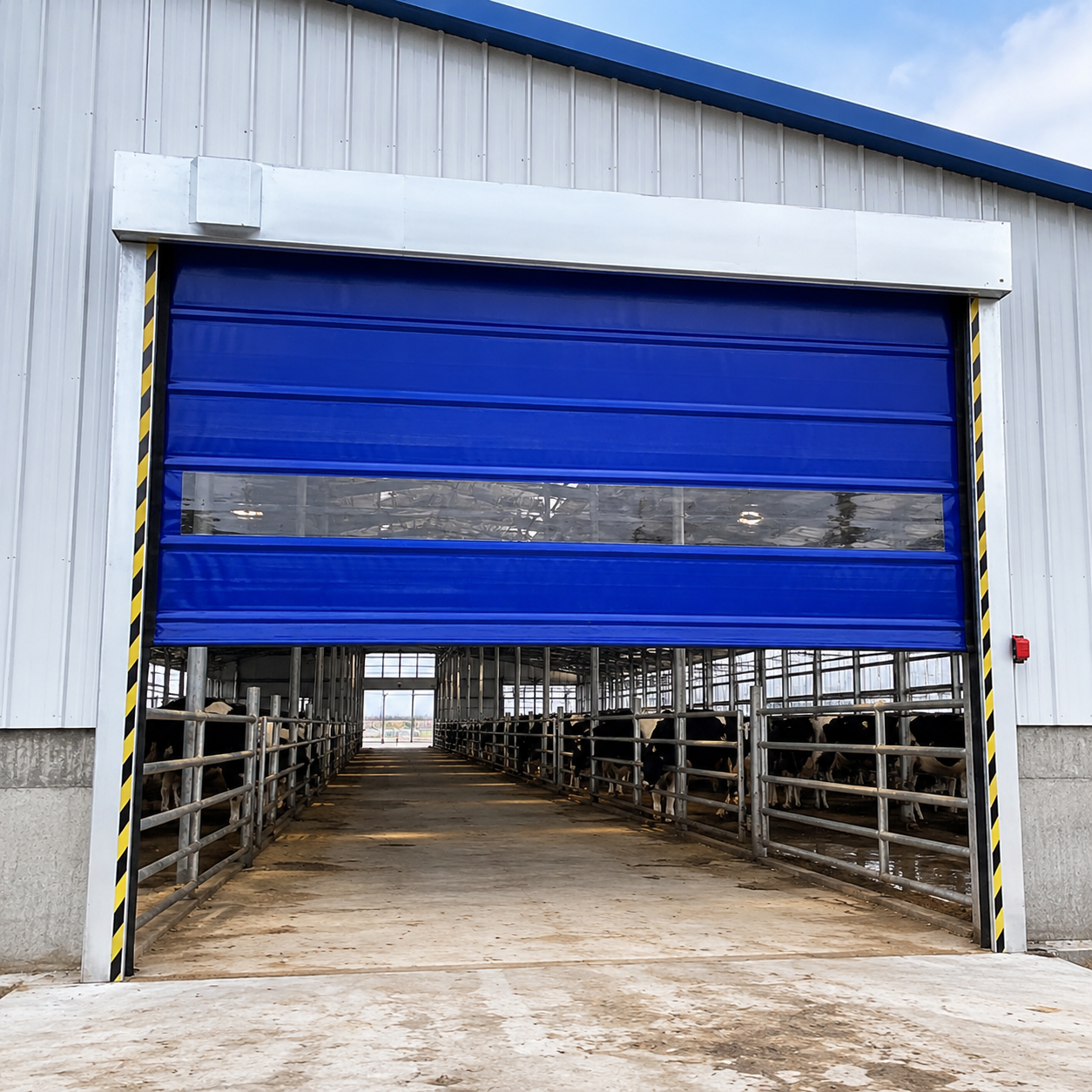

A livestock roll up door is a fast vertical opening door designed for farm buildings that require frequent vehicle, worker or livestock passage. Compared with conventional swing doors, this structure saves side space and can open quickly to reduce heat exchange, dust entry, wind exposure and workflow delays.
This product can also be described as high speed roll up doors, fast stacking doors, PVC roll up doors, rolling gates, roll gates or automatic rolling doors depending on the installation environment. It is suitable for barns, livestock housing, feed rooms, warehouses, cold storage areas, processing workshops and farm equipment entrances.
Product Features
- Fast Stacking Door Structure: The door curtain rises vertically and stacks upward, helping large farm openings stay clear for vehicles, workers and equipment.
- High-Strength PVC Curtain: The curtain uses polyester fiber base fabric with coated surface. It supports waterproof, dustproof, self-cleaning and flame-retardant material options without publishing an exact flame rating before confirmation.
- Galvanized or Stainless Steel Frame: The side frame can use galvanized steel plate or stainless steel plate according to budget, corrosion environment and project requirement.
- Wind-Resistant Bars: Vertical wind-resistant bars improve curtain stability and help the door resist airflow pressure around large farm openings.
- Servo Motor Option: A servo motor can be matched with an intelligent control box for smoother speed control and more stable automatic operation.
- 220V / 380V Electrical Options: Motor and control systems can be selected according to local farm power conditions.
- Safety Photocell and Infrared Protection: Safety sensors help detect people, vehicles or obstacles in the door area before or during closing.
- Bottom Safety Airbag Option: The optional bottom safety airbag improves protection if the door bottom touches an obstacle.
- Bottom Dustproof Pocket: The bottom seal structure helps reduce dust, insects and small debris entering the building.
- Emergency Opening Design: If power or drive failure happens, the motor brake and balance system can be used to help lift the door manually.
- Multiple Control Methods: Radar induction, geomagnetic loop, pull rope switch, face recognition, remote control and push button control can be selected.
- Custom Door Curtain Colors: Red, yellow, blue, green, white, gray and full transparent curtain options are available.
Configuration Options
| Configuration | Available Choices | Buyer Notes |
|---|---|---|
| Door Type | Fast stacking door / PVC roll up door / livestock rolling door | Final name can be selected by market and application |
| Curtain Material | Polyester fiber base fabric with coated surface | Optional transparent window can be discussed |
| Frame Material | Galvanized steel plate / stainless steel plate | Choose based on corrosion environment and budget |
| Motor System | Standard motor / servo motor option | Servo motor is recommended for higher frequency operation |
| Voltage | 220V / 380V | Confirm local power standard before quotation |
| Control Box | Standard control / intelligent control box | Optional with automatic sensors |
| Opening Method | Radar sensor / loop sensor / pull rope / face recognition / remote / button | Match traffic type and site habits |
| Safety System | Photocell / safety light device / infrared device / bottom safety airbag | Final safety set depends on use environment |
| Door Curtain Color | Red / yellow / blue / green / white / gray / full transparent | Custom color depends on material and MOQ |
| Emergency Opening | Motor brake + balance system assisted opening | Useful during power failure or drive fault |
| Customization | Width, height, curtain color, frame material, motor, sensors, packaging | Confirm opening size before production |

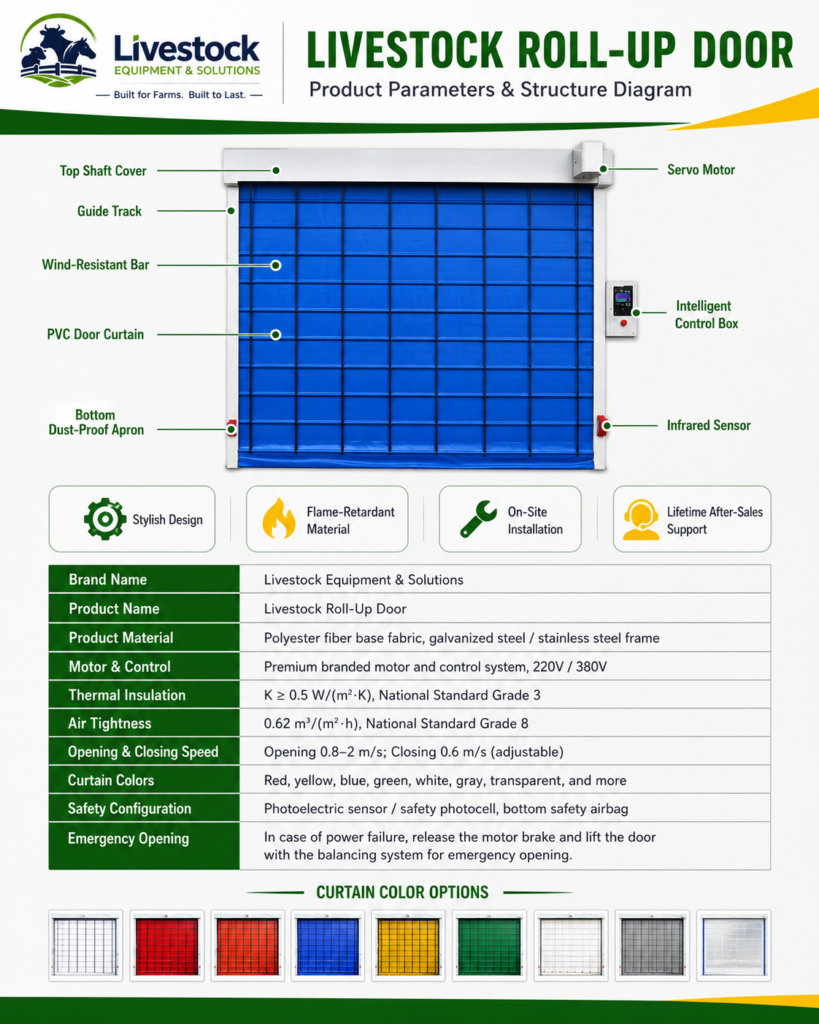

Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Livestock Roll Up Doors / Fast Stacking Doors |
| Door Curtain Material | Polyester fiber base fabric with coated surface |
| Frame Material | Galvanized steel plate / stainless steel plate |
| Motor & Control | Domestic or international brand motor control system, 220V / 380V |
| Optional Drive | Servo motor + intelligent control box |
| Thermal Insulation Reference | K ≥ 0.5 W/(m²·K), China standard Grade 3 reference |
| Air Tightness Reference | 0.62 m³/(m²·h), China standard Grade 8 reference |
| Opening Speed | 0.8–2 m/s, adjustable |
| Closing Speed | 0.6 m/s, adjustable |
| Curtain Colors | Red, yellow, blue, green, white, gray, full transparent |
| Safety Configuration | Photocell / safety light device, optional bottom safety airbag, infrared protection |
| Emergency Opening | Motor brake release with balance system assisted lifting |
| Control Methods | Radar induction, geomagnetic induction, pull rope switch, face recognition, remote control, push button |
| Bottom Seal | Bottom dustproof fabric pocket |
| Main Components | Sealing box frame, guide rail, wind-resistant bar, PVC door curtain, servo motor, control box, infrared device |
| Applications | Livestock barns, dairy buildings, feed storage, workshops, machinery entrances, processing areas |
| Customization | Size, color, motor, voltage, frame material, sensor system, safety system, packaging |
Important Note: Maximum size, exact flame-retardant grade, CE / ISO certification, warranty period, MOQ and installation service terms are not confirmed in the current materials. Do not publish them as fixed claims before confirmation.

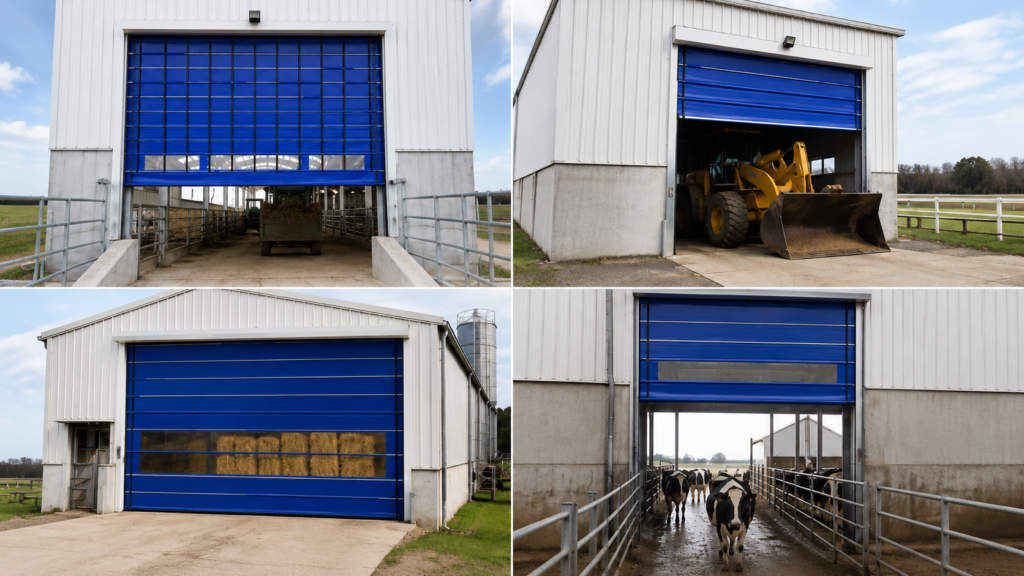

Applications
- Dairy Barn Entrances: Fast roll up doors help improve vehicle and worker access at milking-related buildings, feed rooms and service entrances.
- Cattle and Livestock Buildings: The door can be used on cattle sheds, livestock passages and barn entrances where wind protection and frequent access are required.
- Feed Storage Areas: A PVC roll up door can help reduce dust, insects and air exchange around feed rooms and storage entrances.
- Farm Machinery Entrances: Large openings for tractors, loaders and forklifts can use automatic roll up doors for faster daily movement.
- Pig and Poultry Houses: The door can support controlled access in farm buildings that need dust reduction, weather protection and safer entry.
- Cold Storage and Processing Areas: Where insulation, sealing and faster opening speed matter, the door can help reduce air exchange during traffic.
- Agricultural Workshops: Farm workshops, equipment rooms and maintenance areas can use rolling doors for space-saving entrance control.

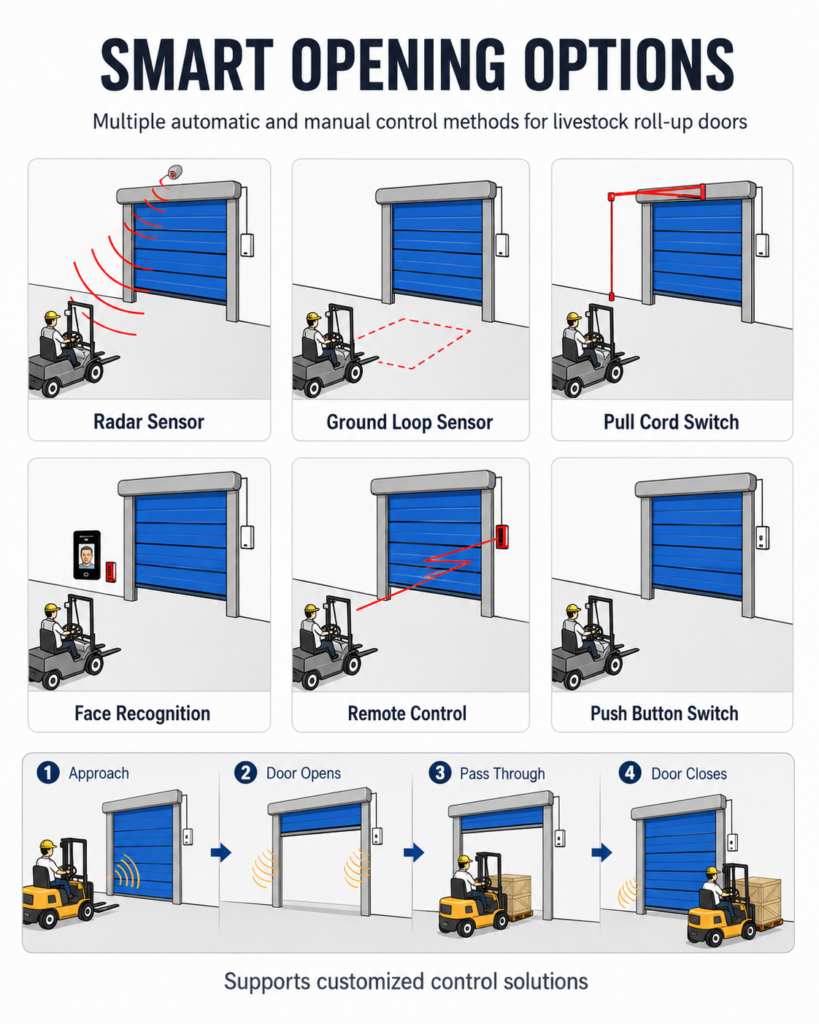

Control Methods
| Control Method | Best For | Notes |
|---|---|---|
| Radar Sensor | Forklifts, loaders, vehicles, frequent passage | Automatic opening when movement is detected |
| Geomagnetic Loop Sensor | Vehicle entrances | Useful for controlled vehicle-triggered opening |
| Pull Rope Switch | Forklift operators and workers | Simple and reliable for daily manual triggering |
| Face Recognition | Restricted personnel areas | Suitable when access control is needed |
| Remote Control | Operators managing the door from a distance | Convenient for farm vehicles and warehouse areas |
| Push Button Switch | Standard wall-mounted operation | Simple and easy for workers to use |
Safety and Emergency Protection
| Safety Feature | Function |
|---|---|
| Safety Photocell / Safety Light Device | Detects obstacles in the doorway area and helps prevent unsafe closing |
| Infrared Safety Device | Adds additional detection protection for people, vehicles or goods |
| Bottom Safety Airbag | Optional protection when the door bottom touches an obstacle |
| Bottom Dustproof Pocket | Helps reduce dust, insects and small debris at the bottom gap |
| Emergency Opening System | Allows assisted door lifting through motor brake release and balance system during power failure |
| Wind-Resistant Bars | Improve door curtain stability in airflow and large opening conditions |
Customization Options
| Custom Option | Available Choices | Buyer Notes |
|---|---|---|
| Opening Size | Custom width and height | Provide clear opening width, height and wall structure |
| Curtain Color | Red, yellow, blue, green, white, gray, transparent | Color confirmation before production |
| Curtain Window | Full PVC curtain / transparent view window option | Transparent section improves traffic visibility |
| Frame Material | Galvanized steel / stainless steel | Stainless steel can be considered for wet or corrosive areas |
| Motor Type | Standard motor / servo motor | Servo option for higher-frequency or smoother operation |
| Voltage | 220V / 380V | Confirm local voltage and phase before quotation |
| Control System | Button, remote, radar, loop, pull rope, face recognition | Select by traffic frequency and user habits |
| Safety System | Photocell, infrared, bottom safety airbag | Strongly recommended for vehicle and worker passage |
| Packaging | Export packing / custom packaging | Confirm for distributor or project shipments |
| Branding | OEM label and documentation support | Suitable for equipment dealers and project buyers |
Livestock Roll Up Doors vs Barn Side Curtains vs Swing Doors
| Feature | Livestock Roll Up Doors | Barn Side Curtains | Conventional Swing Doors |
|---|---|---|---|
| Main Function | Fast access control for entrances | Sidewall ventilation and weather control | Basic opening and closing |
| Best Location | Doorways, machinery entrances, feed rooms, processing areas | Barn sidewalls and long openings | Smaller traditional barn entrances |
| Opening Speed | Fast, 0.8–2 m/s reference | Manual or roll up adjustment | Slower manual opening |
| Space Requirement | Vertical opening saves side space | Sidewall mounted | Needs swing clearance |
| Automation | Radar, loop, remote, pull rope, button options | Usually manual or simple roll up | Usually manual unless upgraded |
| Safety Options | Photocell, infrared, bottom airbag | Limited safety system | Depends on hardware |
| Weather Protection | Good sealing and fast closing | Good airflow and rain/wind control | Good when closed, less flexible |
| Recommended Buyer | Farms needing frequent vehicle or worker access | Farms needing ventilation control | Farms needing simple low-frequency access |
Why Choose Our Livestock Roll Up Doors?
- Farm Building Matching: We help match door size, curtain material, frame material, voltage and control method to your barn opening and traffic frequency.
- Flexible Control Options: Radar, loop sensor, pull rope, face recognition, remote control and button switch options are available.
- Safety-Focused Configuration: Photocell, infrared safety device and bottom safety airbag can be configured for vehicle and worker passage.
- Custom Size and Color: Door width, height, curtain color, transparent window, motor system and packaging can be customized.
- Export Support: Product photos, videos, specifications, installation reference and configuration confirmation can be provided before shipment.
- Suitable for Agricultural Use: The door is suitable for livestock barns, dairy buildings, feed areas, farm workshops and agricultural logistics entrances.
Common Questions
Livestock roll up doors are mainly used for entrances, vehicle passages, feed rooms and workshops where fast opening and closing are required. Barn side curtains are mainly used on long sidewalls for ventilation, daylight and weather control.
Yes. These roll up doors can be customized for dairy barns, cattle buildings, feed storage areas, farm workshops, processing rooms and machinery entrances.
The motor and control system can support 220V or 380V options. Please confirm your local voltage standard, phase requirement and site power condition before quotation.
The curtain uses polyester fiber base fabric with coated surface. The frame can be made from galvanized steel plate or stainless steel plate according to the project requirement.
Control options include radar induction, geomagnetic loop sensor, pull rope switch, face recognition, remote control and push button switch.
Safety options include photocell or safety light device, infrared protection and optional bottom safety airbag. These help reduce risks when people, forklifts, vehicles or goods pass through the door.
Yes. The emergency opening design allows the motor brake to be released and the balance system to help lift the door manually during power or drive failure.
Yes. Door width, height, curtain color, frame material, motor type, safety system and control method can be customized. Common curtain colors include red, yellow, blue, green, white, gray and full transparent.
